DeFelsko F3-G Positector 6000 F3 Coating Thickness Gauge with Advanced Body, Integral Probe, Measures Coatings on Ferrous Metals, 0-60 mils



Price: $ 1,025.00

DeFelsko F3-G PosiTector 6000 F3 Advanced Ferrous Coating Thickness Gage
Model: F3-G Advanced Body
Storage: 250,000 readings in up to 1,000 batches and sub-batches
Substrate: Ferrous Metals
Range: 0 - 60 mils (0 - 1500 m)

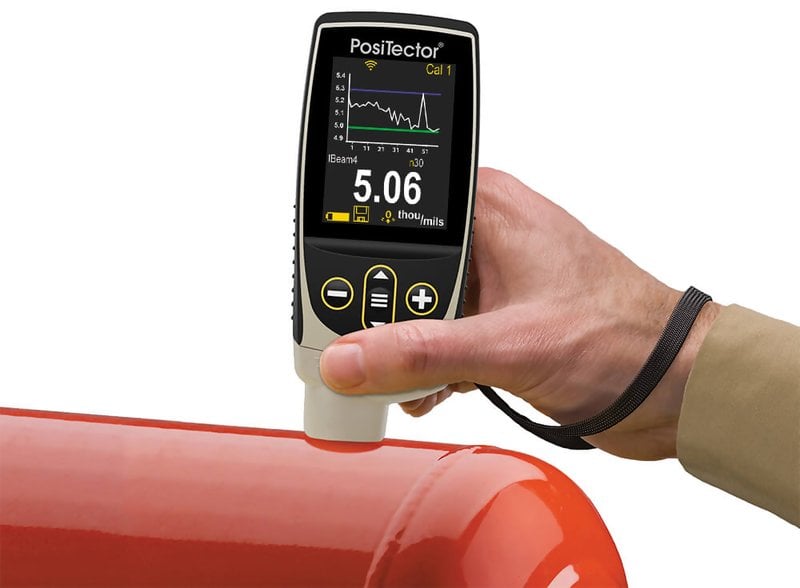

The DeFelsko F3-G PosiTector 6000 F3 Advanced Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles.

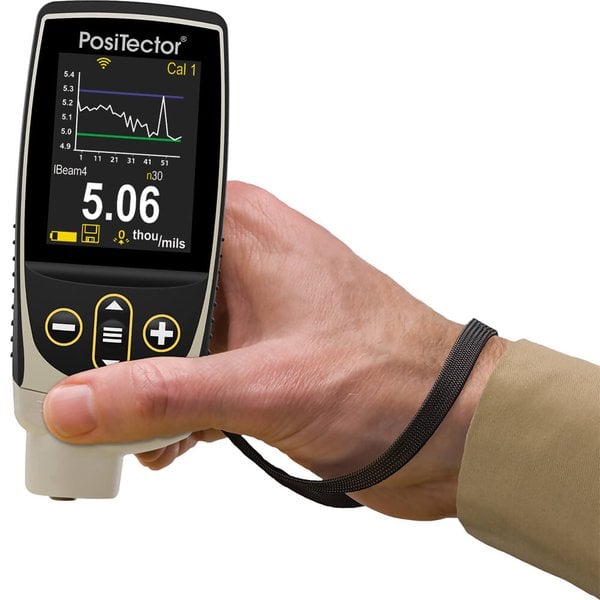

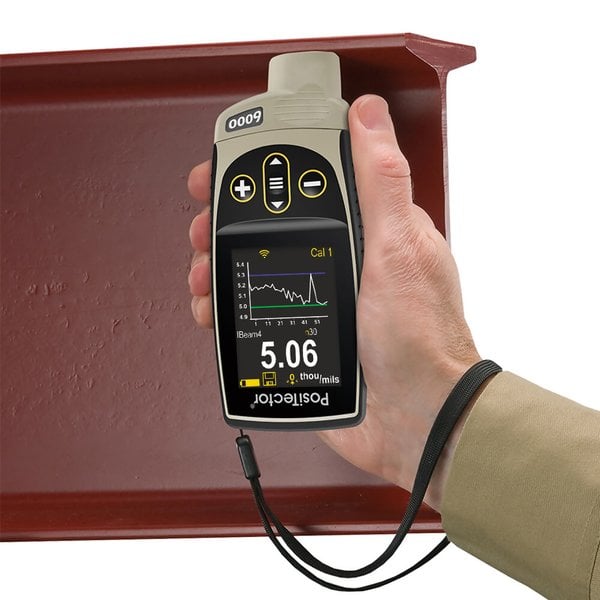

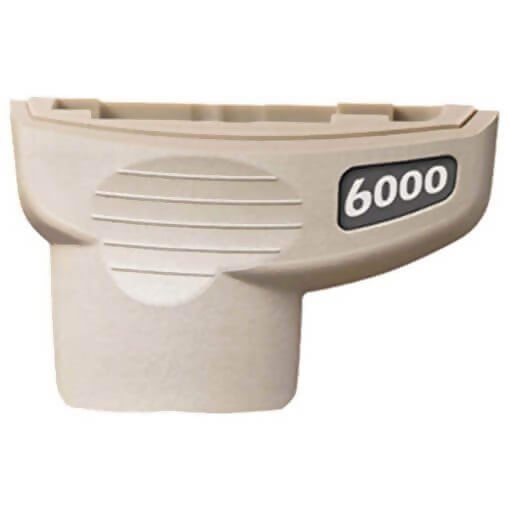

The DeFelsko PosiTector 6000 F3 Integral Probe design offers maximum convenience and simplicity allowing for one-hand use, eliminating the external probe and cable which can be cumbersome in certain applications.

The DeFelsko PosiTector 6000 F3 Advanced Body features a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.


line
Kit Contents
line

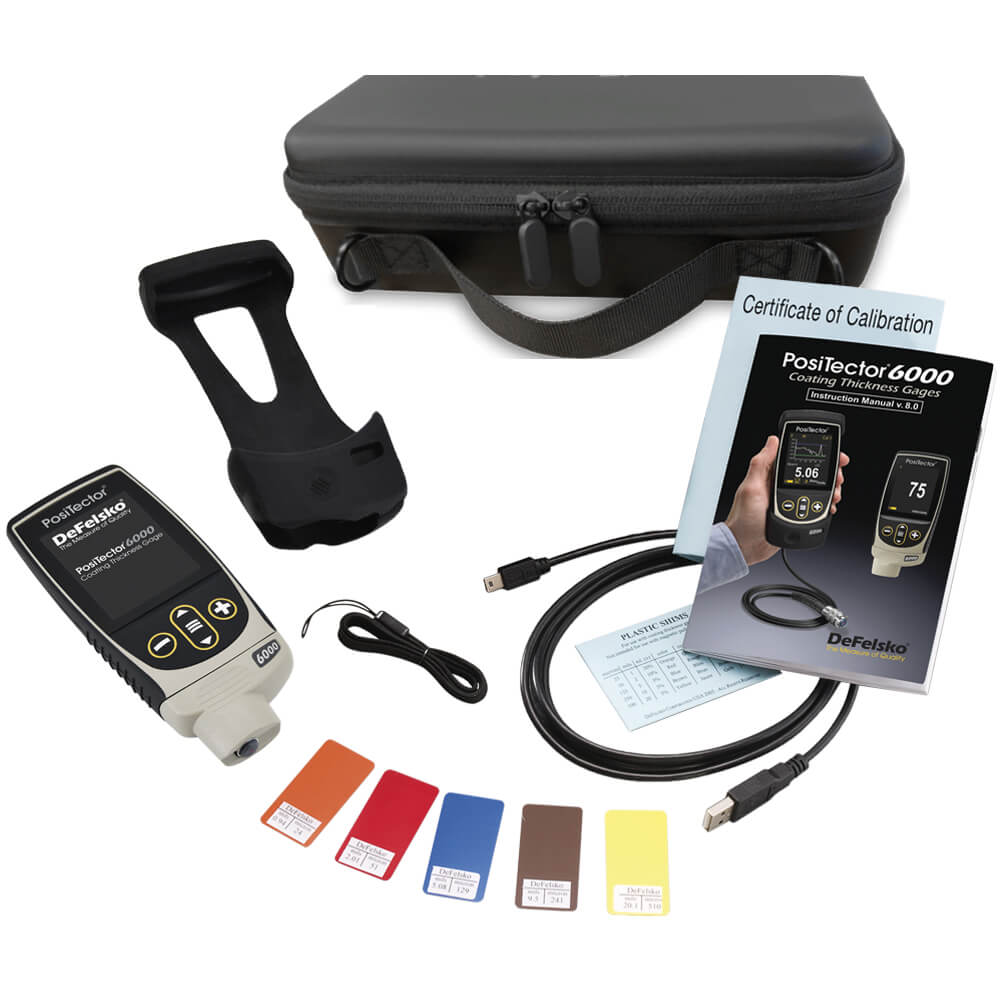

The DeFelsko PosiTector 6000 F3 Advanced Coating Thickness Gage Kit includes everything needed for testing:

  • PosiTector Advanced Gage Body BDYADV-G
  • PosiTector 6000 Probe PRBF-D
  • Precision plastic shims
  • Protective rubber holster with belt clip
  • Wrist strap and protective lens shield
  • 3 AAA alkaline batteries
  • PosiSoft Software and USB cable
  • Long Form Certificate of Calibration traceable to NIST or PTB
  • Convenient carrying case and instructions
  • Two (2) year warranty


line
Features
line

Simple

  • Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
  • Ready to measure - no adjustment required for most applications
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • Flashing display - ideal in a noisy environment
  • RESET feature instantly restores factory settings

Durable

  • NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to NIST or PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for precision applications
  • Conforms to national and international standards including ISO and ASTM

Versatile

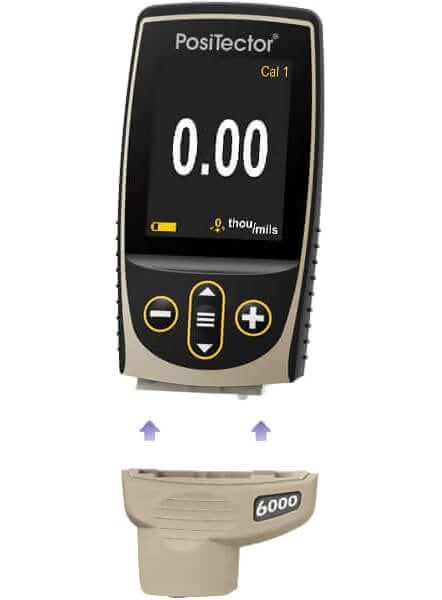

  • PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
  • Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

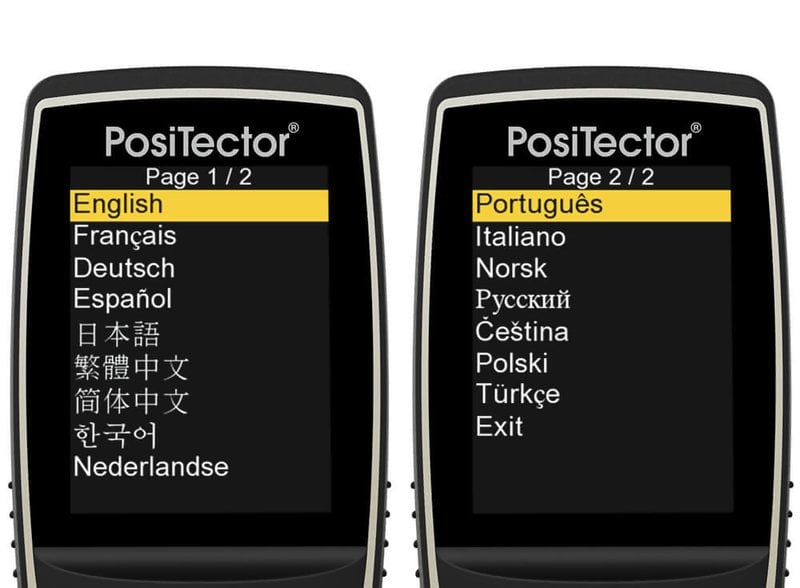

  • Selectable display languages
  • NEW Auto rotating display with Flip Lock
  • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
  • Mils/Microns/mm switchable

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
  • NEW Screen Capture - save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life

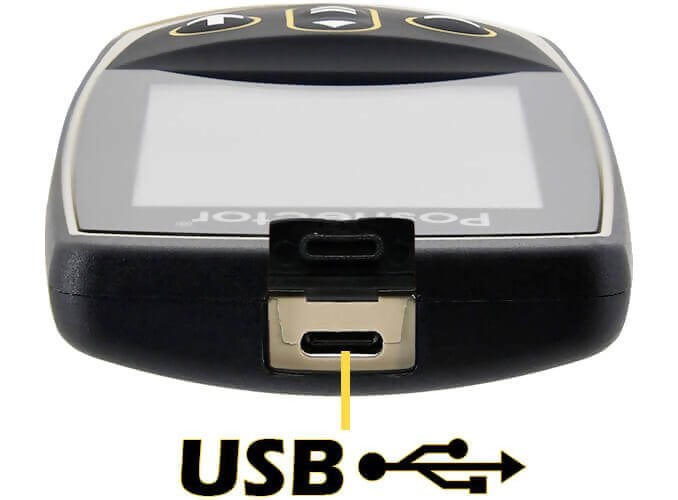

  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • Every stored measurement is date and time stamped
  • Software Updates via web keep your gage current

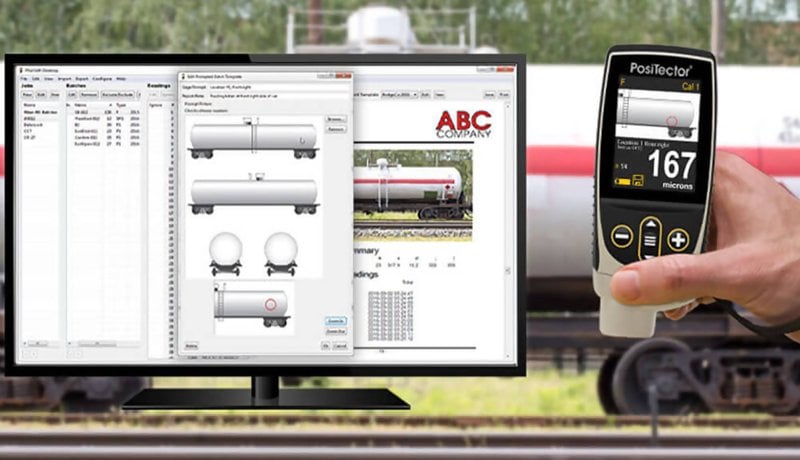

  • Software Solutions for viewing, analyzing & reporting data


line
Advanced Model Features
line

  • Includes ALL features as shown above plus
  • NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches

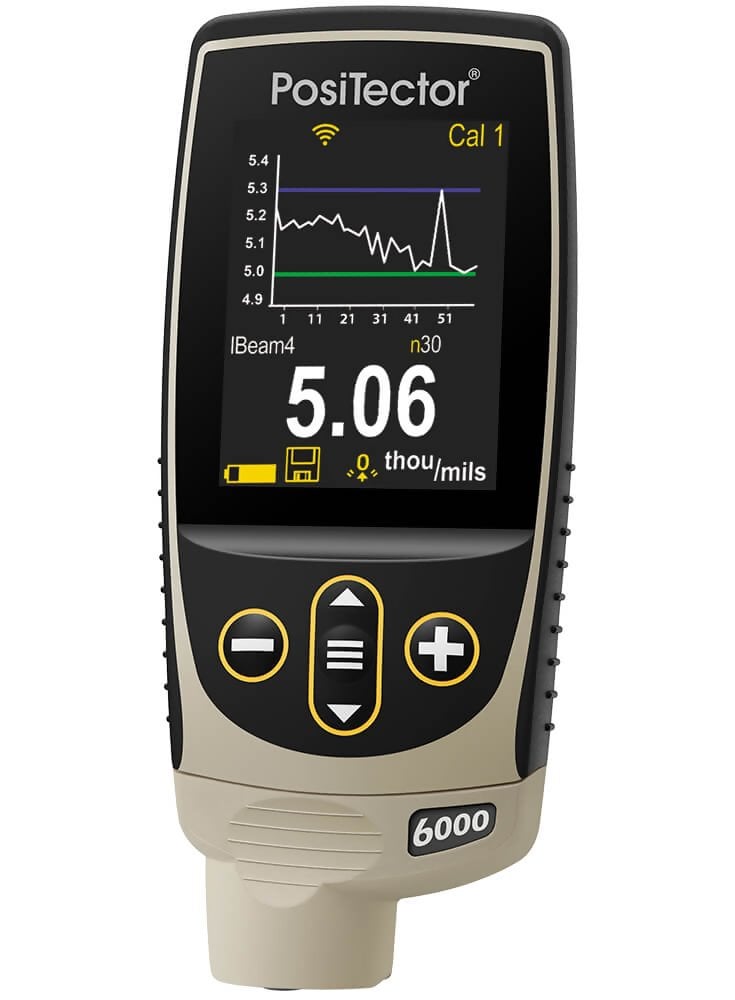

  • Live graphing of measurement data
  • NEW Prompted Batch Mode-create pre-defined batches with on-screen text and image prompts for each reading
  • 3 Scan Modes - increase measurement speed to 180+ readings per minute
    • Normal - take continuous readings without lifting the probe
    • Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
    • Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
  • NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols



Specifications

Measuring principlemagnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous)
DisplayHigh contrast, reversible color LCD
Data OutputUSB - "1" & "3" Models
Bluetooth - "3" Models
Power3 AAA batteries, Included
Dimensions5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight5.8 oz. (165 g) without batteries
Protection ClassMeets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty2 Years
Calibration CertificateCertificate of Calibration showing traceability to NIST included



Probe Specifications

Range:0 - 60 mils
0 - 1500
*Accuracy: (0.05 mils + 1%) 0 - 2 mils
(0.1 mils + 1%) > 2 mils
(1 + 1%) 0 - 50
(2 + 1%) > 50



PosiSoft Suite of Software

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


line
FAQ's - Frequently Asked Questions
line

Click to View DeFelsko PosiTector 6000Frequently Asked Questions

line
Related Products
line

Bluetooth Printer
PRINTERBT

  • For use with the: PosiTector 6000, PosiTector 200, PosiTector SPG, PosiTector RTR H, PosiTector RTR 3D, PosiTector DPM, PosiTector IRT, PosiTector SST, PosiTector UTG, PosiTector SHD, PosiTector BHI

line

DeFelsko CertifiedCoated Metal Plates

  • Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage

line

DeFelsko SMLINK
PosiTector SmartLink Wireless Module

  • Wirelessly connect PosiTector probes to smart devices wit the Positector SmartLink


line
Downloads
line

DeFelsko PosiTector 6000 Coating Thickness Gages- F Ordering Guide
DeFelsko PosiTector 6000 Coating Thickness Gages- Full Instruction Manual
DeFelsko PosiTector 6000 Coating Thickness Gages- Literature
DeFelsko PosiTector 6000 Coating Thickness Gages- Quick Guide
DeFelsko PosiTector 6000 Coating Thickness Gages - Online Instructions Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
DeFelsko F3-G Positector 6000 F3 Coating Thickness Gauge with Advanced Body, Integral Probe, Measures Coatings on Ferrous Metals, 0-60 mils $1,025.00
Accessories Price
DeFelsko PRINTERBT Bluetooth Printer receives data from Advanced models for use with the PosiTectors: 6000, 200, SPG, RTR H, RTR 3D, DPM, IRT, SST, UTG, SHD, BHI $295.00
DeFelsko PAPERBT 10 rolls of printer paper $20.00
DeFelsko STDCSS Certified Plastic Shim Set, 8 shims $195.00
DeFelsko STDZSTL Zero Plates Small - Steel $55.00
DeFelsko STDZALM Zero Plates Small - Aluminum 38mm $55.00
DeFelsko BOOTGAGE-G Protective Rubber Holster for PosiTector gage bodies $20.00
DeFelsko USBAC-G AC Power Kit for use with the PosiTectors: 6000, 200, SPG, RTR H, RTR 3D, DPM, IRT, SST, UTG, SHD, BHI for with serial numbers greater than 864000 $45.00
DeFelsko CASEINSP Plastic Inspection Case for use with the PosiTectors: 6000, 200, SPG, RTR H, RTR 3D, DPM, IRT, SST, UTG, SHD, BHI $30.00
DeFelsko LENSSHIELD-G Protective Lens Shield pack of five $10.00
DeFelsko CASENYLON-G Nylon Pouch $15.00
