DeFelsko BDYADV-G PosiTector Advanced Gauge Body Only with Color Screen, USB, Wifi & Bluetooth data Output, Reading Storage Capacity 250,000 in up to 1000 Groups



Price: $ 720.00

DeFelsko BDYADV-G PosiTector Advanced Gage Body
Body Only
Manufacturer: DeFelsko
Warranty: One Year

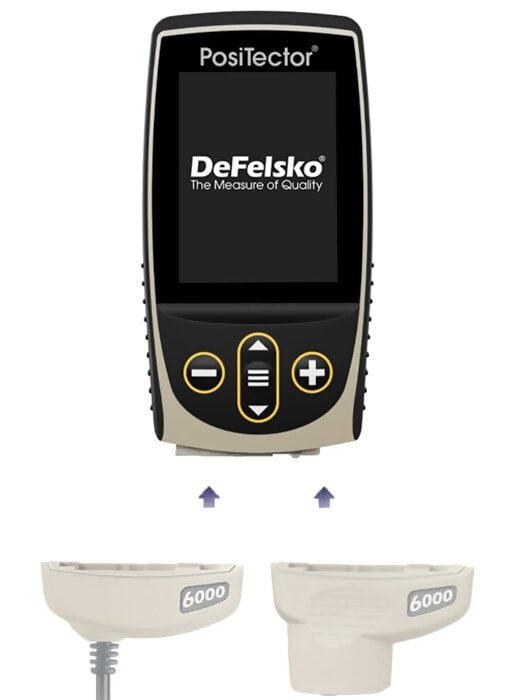

PosiTector Gage Bodies can be used with all PosiTector probes.


line

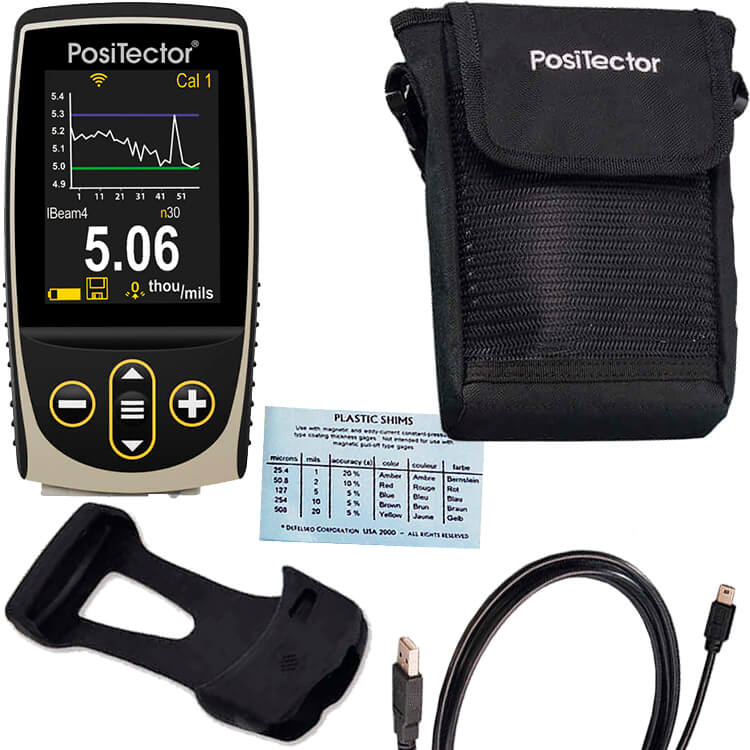

Kit Contents
line

  • PosiTector Standard Gage Body BDYAVD-G
  • Protective rubber holster with belt clip
  • Wrist strap and protective lens shield
  • 3 AAA alkaline batteries
  • USB cable
  • Nylon carrying case
  • Two (2) year warranty


line
Features
line

  • Storage of 250,000 readings in up to 1,000 batches and sub-batches
  • Touchscreen keyboard quickly renaming batches, adding notes, and more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Store thickness, profile, environmental, wall thickness, hardness and salt contamination measurements in individual batches


lineDeFelsko PosiTector Gage Bodies: Feature Comparison Chartline

Feature Comparison Chart

For all DeFelsko PosiTector:

DeFelsko Positector 6000 Standard Body
Standard
DeFelsko Positector 6000 Advanced Body
Advanced
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
NEW Ergonomic design with durable rubberized grip
NEW Auto rotating display with Flip Lock
NEW Screen Capture - save 100 screen images for record keeping and review
NEW Up to 30% longer battery life
Reading Storage Capacity1,000 per probe250,000 in up to 1,000 batches
NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more---
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates---
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software---
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols---

DeFelsko PosiTector 6000 Only:
Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
NEW Instant-on feature quickly powers up the gage if recently powered down
Live graphing of measurement data---

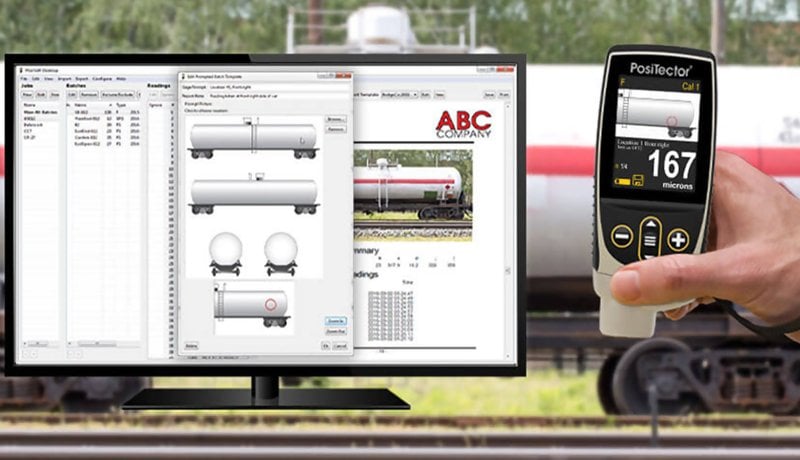

NEW Prompted Batch Mode - create pre-defined batches with on-screen text and image prompts for each reading---
3 Scan Modes -increase measurement speed to 180+ readings per minute:
Normal take continuous readings without lifting the probe
Statistics take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
Limited Count Average take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
---
Multiple stored calibration adjustments for measuring on a variety of substrate conditions---
NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result---

DeFelsko PosiTector 200 Only:
Measure the total thickness of a coating system or up to 3 individual layer thicknesses in a multi-layer system---
Graphics mode with screen capture for detailed analysis of the coating system---
NEW Prompted Batch Mode - create pre-defined batches with on-screen text and image prompts for each reading---
Live graphing of measurement data---

DeFelsko PosiTector SST Only:
Easy 1-2-3 gage interface guides users through the Bresle test method

DeFelsko PosiTector SPG Only:
NEW Instant-on feature quickly powers up the gage if recently powered down
SmartBatch allows entry of user-defined parameters and criteria to for quick statistical analysis comply with standards such as ASTM D4417 and SSPC PA-17---
Live graphing of measurement data---

DeFelsko PosiTector DPM Only:
NEW Instant-on feature quickly powers up the gage if recently powered down
Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals.---
User defined limits for all parameters - visible and audible warnings. Receive email alerts when connected to WiFi.---
Trend Charts graph readings in real-time---
Wet bulb temperature can be displayed and recorded---

DeFelsko PosiTector UTG Only:
Pre-programmed velocities - simply select from a list of common materials or enter your own with ease
A-Scanwith adjustable Gain and screen capture. UTG M and UTG P probes include dual cursors to measure the distance between echoes---
B-Scan- displays a cross sectional profile of the test material---

DeFelsko PosiTector RTR-H Only:
Produces a more accurate peak-to-valley height measurement. See linearized peak height (HL)

DeFelsko PosiTector RTR-3D Only:
NEW Ergonomic design with durable rubberized grip
Live graphing of measurement data---
Download high resolution Surface Data Files (.SDF) for analysis in the included PosiSoft or third-party software---
Generates two dimensional (2D) and three dimensional (3D) thumbnail images. Ideal for inclusion into reports and confirming consistent blasting results---

DeFelsko PosiTector IRT Only:
NEW Instant-on feature quickly powers up the gage if recently powered down
Trend Charts graph readings in real-time---
Store thickness, profile, environmental salt contamination, hardness, and wall thickness measurements in individual batches---

DeFelsko PosiTector SHD Only:
NEW Instant-on feature quickly powers up the gage if recently powered down
Auto Sub-Batch - automatically create sub-batches after the required number of readings are taken---
Live graphing of measurement data---
Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches---

DeFelsko PosiTector BHI Only:
NEW Instant-on feature quickly powers up the gage if recently powered down
Auto Sub-Batch - automatically create sub-batches after the required number of readings are taken---
Live graphing of measurement data---
Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches---

For use with the:DeFelsko PosiTector 6000,DeFelsko PosiTector 200,DeFelsko PosiTector SPG,DeFelsko PosiTector RTR H,DeFelsko PosiTector RTR 3D,DeFelsko PosiTector DPM,DeFelsko PosiTector IRT,DeFelsko PosiTector SST,DeFelsko PosiTector UTG,DeFelsko PosiTector SHD,DeFelsko PosiTector BHI


line
Downloads
line

DeFelsko PosiTector 6000 Coating Thickness Gages - Quick Guide
DeFelsko PosiTector 6000 Coating Thickness Gages - Online Instructions Manual
DeFelsko Accessories for Inspection Instruments - Online Catalog

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
DeFelsko BDYADV-G PosiTector Advanced Gauge Body Only with Color Screen, USB, Wifi & Bluetooth data Output, Reading Storage Capacity 250,000 in up to 1000 Groups $720.00
Accessories Price
DeFelsko PRINTERBT Bluetooth Printer for use with PosiTector (Advanced Models): 6000, 200, SPG, RTR H, RTR 3D, DPM, IRT, SST, UTG, SHD, BHI, GLS $310.00
DeFelsko PAPERBT 10 rolls of printer paper (Advanced models) $20.00
DeFelsko STDCSS NIST Certified Plastic Shim Set, Includes 8 Size Shims $215.00
DeFelsko STDZSTL Zero Plates Small - Steel $60.00
DeFelsko STDZALM Zero Plates Small - Aluminum 38mm $60.00
DeFelsko BOOTGAGE-G Protective Rubber Holster for PosiTector gage bodies $20.00
DeFelsko USBAC-G AC Power Adapter, 100-230V for use with the PosiTectors: 6000, 200, SPG, RTR H, RTR 3D, DPM, IRT, SST, UTG, SHD, BHI for with serial numbers greater than 864000 $45.00
DeFelsko CASEINSP Plastic Inspection Case for use with the PosiTectors: 6000, 200, SPG, RTR H, RTR 3D, DPM, IRT, SST, UTG, SHD, BHI $40.00
DeFelsko LENSSHIELD-G Protective Lens Shield, Pack of 5, for use with the PosiTector 6000, PosiTector 200, PosiTector SPG, PosiTector RTR H, PosiTector RTR 3D, PosiTector DPM, PosiTector IRT, PosiTector SST, PosiTector UTG, PosiTector SHD, PosiTector BHI, PosiTector GLS $10.00
DeFelsko CASENYLON-G Nylon Pouch $15.00
