DeFelsko PEN PosiPen
Conforms to ASTM D7091/B499, ISO 2808 and others
Magnetic pull-off coating thickness gauge measures non-magnetic coatings such as paint, enamel, plating & hot-dip galvanizing on steel on small, hot and hard-to-reach surfaces.
PosiPen has a very small, unique magnet which can be placed with pin-point accuracy on extremely small parts, and on peaks and valleys. Ideal for measuring non-magnetic coatings such as paint, enamel, plating, and hot-dip galvanizing on steel.
- Can be used on small, hot or hard-to-reach surfaces
- Easy-to-Use
- Lightweight - easy to carry, just like a ball point pen
- Rugged - not affected by mechanical shock, acid, oil, water and dust
- No user adjustment required
- Highly wear resistant probe tip for long life and continuous accuracy
Certificate of Calibration showing traceability to PTB included (Long Form)
Conforms to ASTM D7091/B499, ISO 2808 and others
Kit Contents
- DeFelsko PEN PosiPen

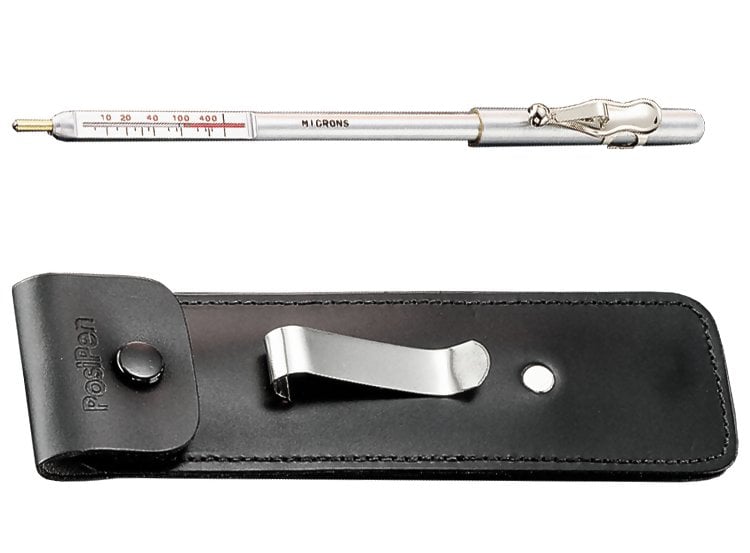

- Leather Pouch
- Instructions
- Certificate of Calibration traceable to NIST
- Two (2) year warranty
Features
Simple
- Easy-to-Use
- Lightweight - easy to carry, just like a ballpoint pen
Durable
- No batteries / electronics
- Rugged - not affected by mechanical shock, acid, oil, water and dust
Accurate
- No user adjustment required
- Certificate of Calibration traceable to PTB included
- Highly wear resistant probe tip for long life and continuous accuracy

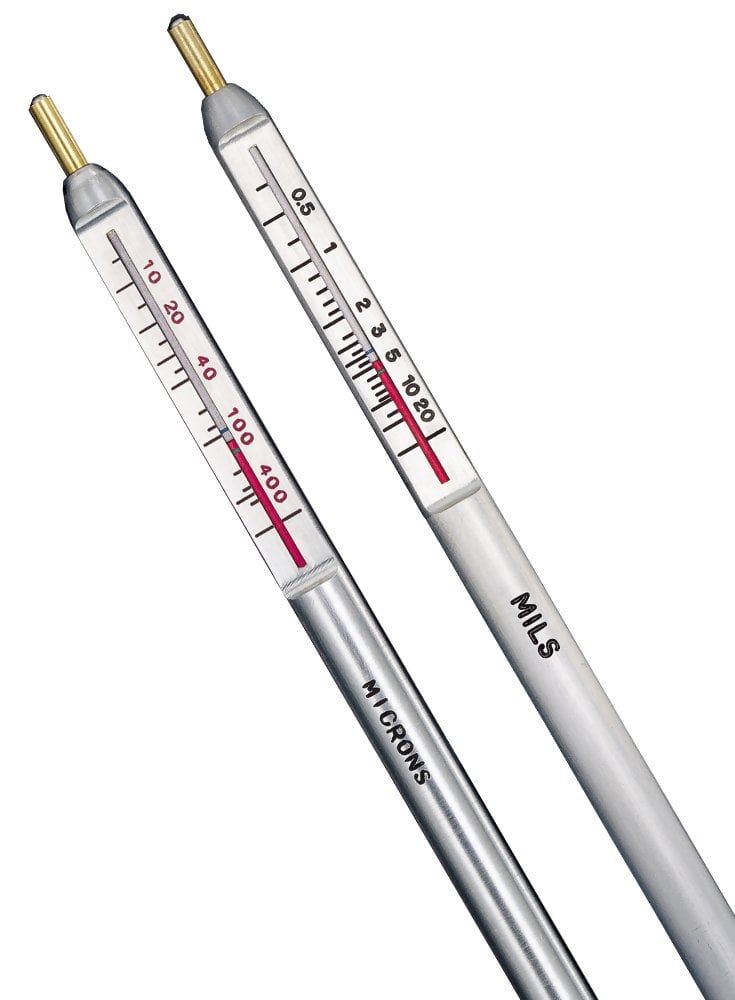

- Each PosiPen hastwo scales, mils (inch) and microns (metric)
- Conforms to National and International Standards including ASTM D7091/B499, ISO 2808 and others
Used For
- Small, hot or hard-to-reach surfaces
- Spot Checks - conveniently fits in a shirt pocket
- Hot Sprayed Coatings
Ideal For
- Refineries, petrochemical plants
- Platers - electroplating, chrome, zinc, galvanizing
- Powder coaters
Specifications
| English | Metric |
| Range | 0.25 to 20 mils | 5 to 500 microns |
| Tolerance | 10% and 0.1 mil | 10% and 2.5 microns |
| Temperature | -150 F to 450 F | -100 C to 230 C |
How It Works
Operation:

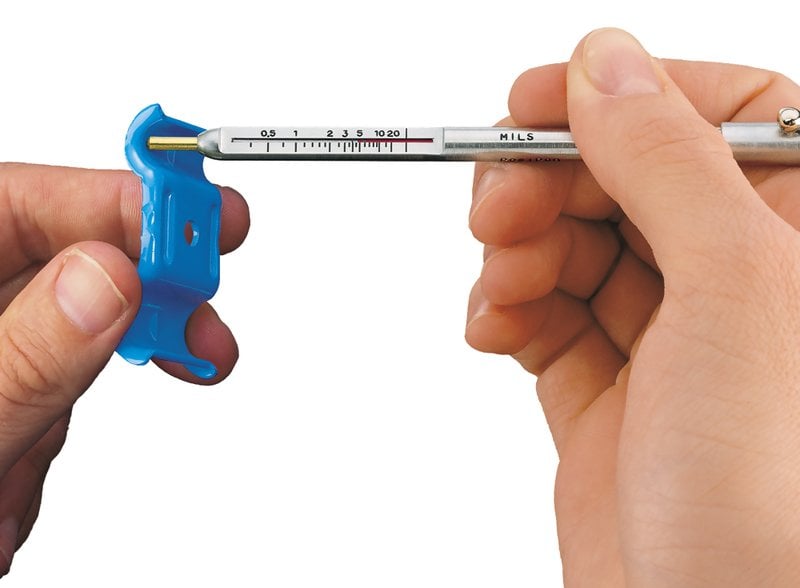

- Place the tip of the PosiPen on the coated surface and allow the magnet to contact.
- Pull the PosiPen straight back from the object to be measured while keeping close watch on the appropriate indicator.
- Note the reading when the magnet releases
|
Triple Indicator Compensates for Gravity
The PosiPen compensates for gravity when measuring in different positions.

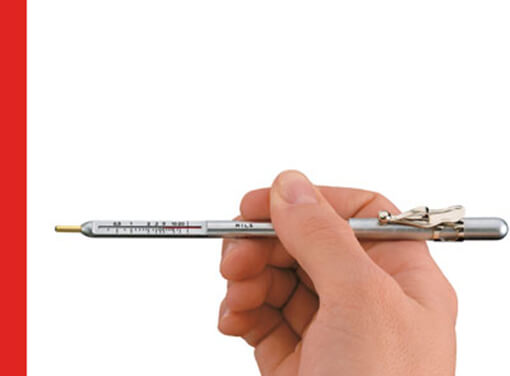

- Use the red/silver joining line when the Gage is horizontal (walls).

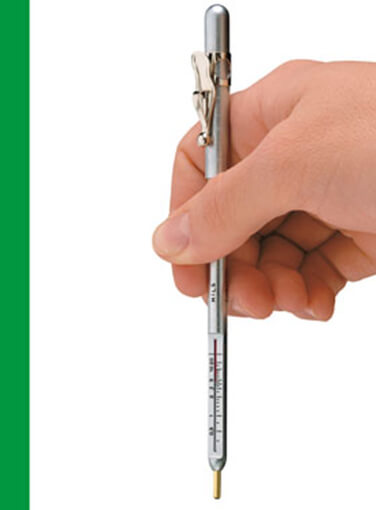

- Use the green line when the Gage is pointing straight down (green/ground).

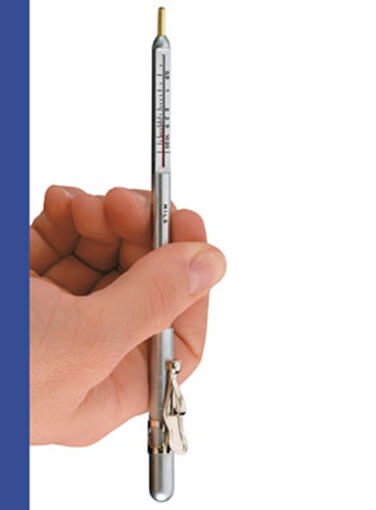

- Use the blue line when the Gage is pointing straight up (blue/sky).
