DeFelsko KITAUTOFN3 PosiTector Advanced Automotive Paint Inspection Kit with Advanced Gauge Body, Probe PRBFN 0 - 1,500 µm / 0 - 60 mils Integral Probe and Probe PRB200B 13 - 1,000 μm
$3,465.00
Loading...
Loading product info...
Similar Products to Consider
Product Description
The DeFelsko KITAUTOFN3 PosiTector Advanced Automotive Paint Inspection Kit is required for accurate paint depth measurement on automobiles. Include probes for measuring coatings on all automotive substrates steel, aluminum, and plastic providing everything required for accurate paint depth measurement on automobiles.
- Automotive Manufacturing
- ADAS Bumper and Fascia Repair
- Auto Auction Appraisal
- Automotive Detailing and Refinishing
- Collision Repair
Kit Contents

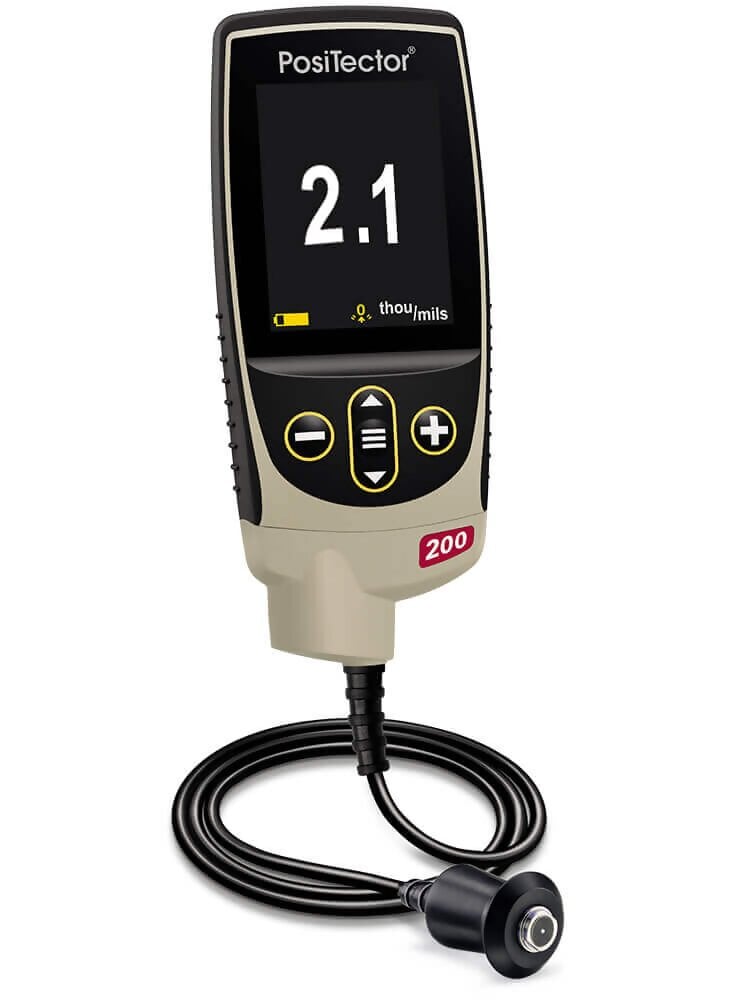

- DeFelsko 200B3 PositectorAdvanced Ultrasonic Coating Thickness Gage

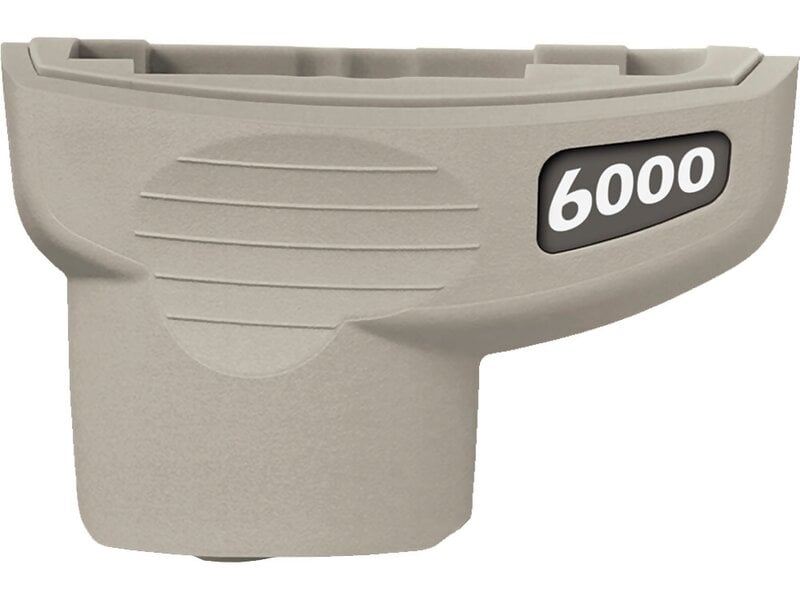

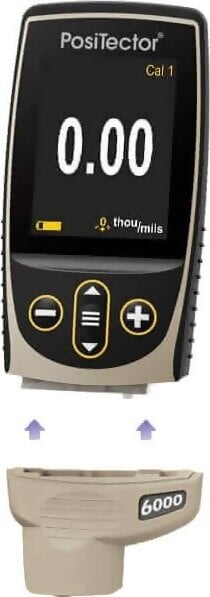

- DeFelsko PRBFN PosiTector 6000 Integral Probe
- Couplant (Ultrasonic Gel)
- Protective Carrying Case and Instructions
Features
Simple
- Ready to measure no adjustment required for most applications
- Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
Durable
- Weatherproof, dustproof, and water resistant IP65-rated enclosure
- Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
Accurate
- Responsive transducers provide fast, accurate readings
- Certificate of Calibration showing traceability to NIST or PTB included
- Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808
Versatile
- Auto rotating display with Flip Lock
- Mils/Microns switchable
- Selectable display languages
Powerful
- Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Range ideal for ignoring unwanted surface echoes
- Screen Capture save 100 screen images for record keeping and review
- Over 20 hours of continuous operation with 3 AAA batteries
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drive stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Includes PosiSoft suite of software for viewing and reporting data
- Software Updates via web keep your gage current
Advanced Model
- Measure the total thickness of a coating system or up to 3 individual layer thicknesses in a multi-layer system
- Graphics mode with screen capture for detailed analysis of the coating system
- Storage of 250,000 readings in up to 1,000 batches
- Prompted Batch Mode create pre-defined batches with on-screen text and image prompts for each reading

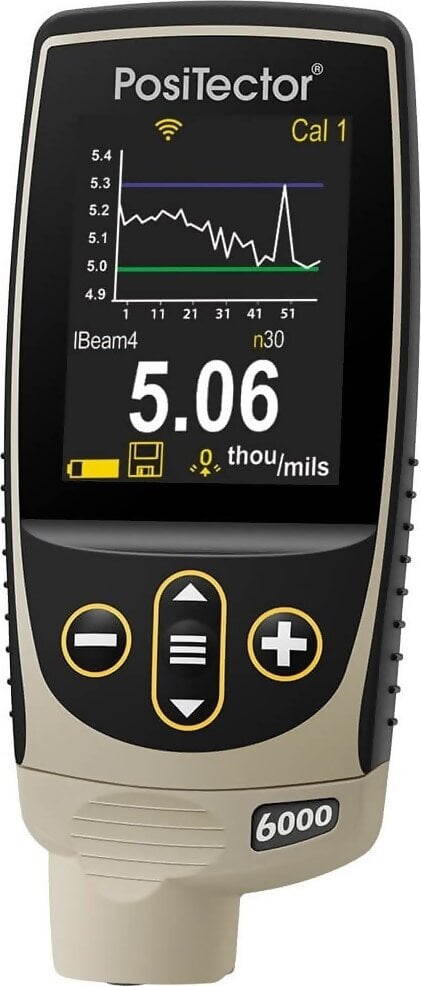

- Live graphing of measurement data
- SSPC-PA 9 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
- Touchscreen keyboard for quickly renaming batches, adding notes, and more
- Multiple stored calibration adjustments for measuring on a variety of coating applications
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
Specifications

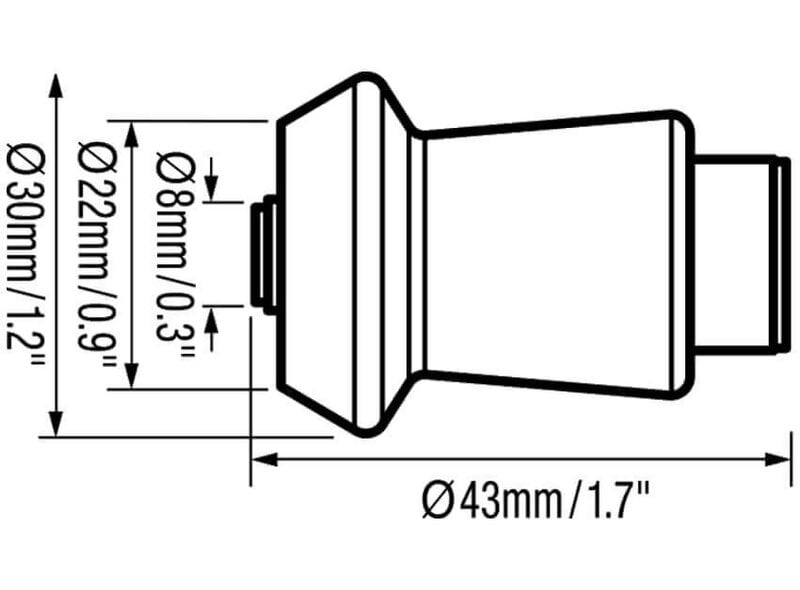

| Probe | PRB200B |
| Application | Polymer coating on wood, plastic, etc. |
| Measurement Range1 | 13 to 1,000 m, 0.5 to 40 mils |
| PRB200B Accuracy | (2 m + 3% of reading), (0.1 mils + 3% of reading) |
| Certified Thickness Standard | STDA3 |
| Probe | PRBFN Ferrous / Non-Ferrous, Regular Cabled |
| Range | 0 - 60 mils, 0 - 1500 |
| PRBFN Accuracy2 | (0.05 mils + 1%) 0 - 2 mils, (0.1 mils + 1%) > 2 mils, (1 + 1%) 0 - 50 , (2 + 1%) > 50 |
- Range limits apply to polymer based coatings only. D probe polyurea range is 50 to 5,000 m (2 to 200 mils).
- Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
