DeFelsko KITAUTOFN1 PosiTector Standard Automotive Paint Inspection Kit with Standard Gauge Body, Probe PRBFN 0 - 1,500 µm / 0 - 60 mils Integral Probe and Probe PRB200B 13 - 1,000 μm

The DeFelsko KITAUTOFN1 PosiTector Standard Automotive Paint Inspection Kit is required for accurate paint depth measurement on automobiles. Include probes for measuring coatings on all automotive substrates steel, aluminum, and plastic providing everything required for accurate paint depth measurement on automobiles.

• Automotive Manufacturing
• ADAS Bumper and Fascia Repair
• Auto Auction Appraisal
• Automotive Detailing and Refinishing
• Collision Repair

Kit Contents

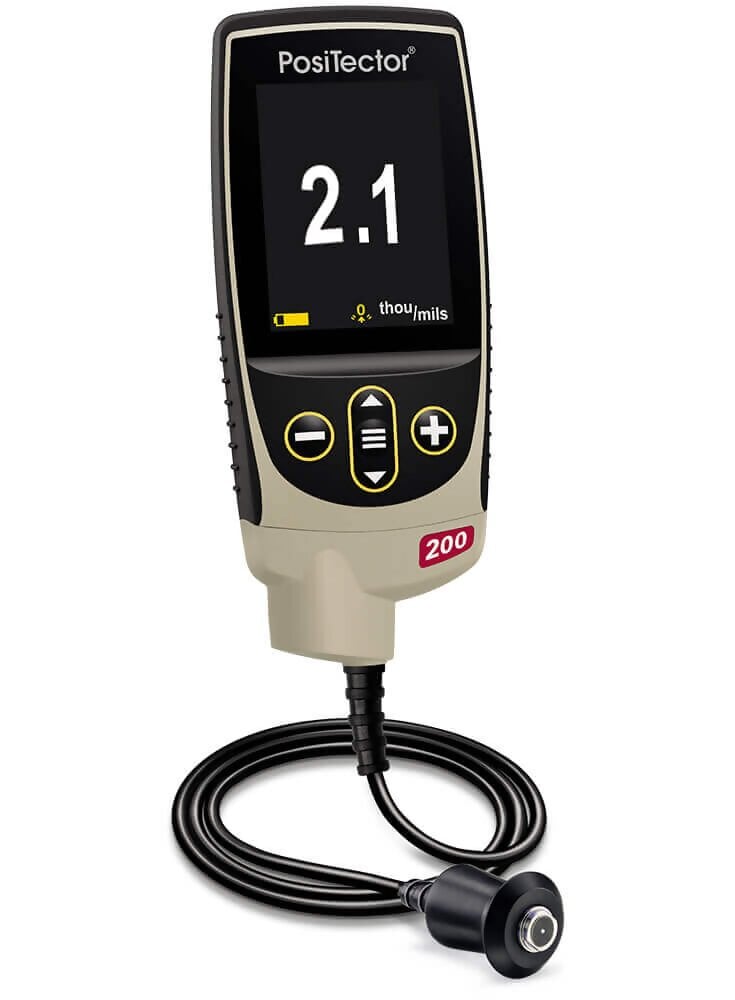

• DeFelsko 200B1 PositectorStandard Ultrasonic Coating Thickness Gage

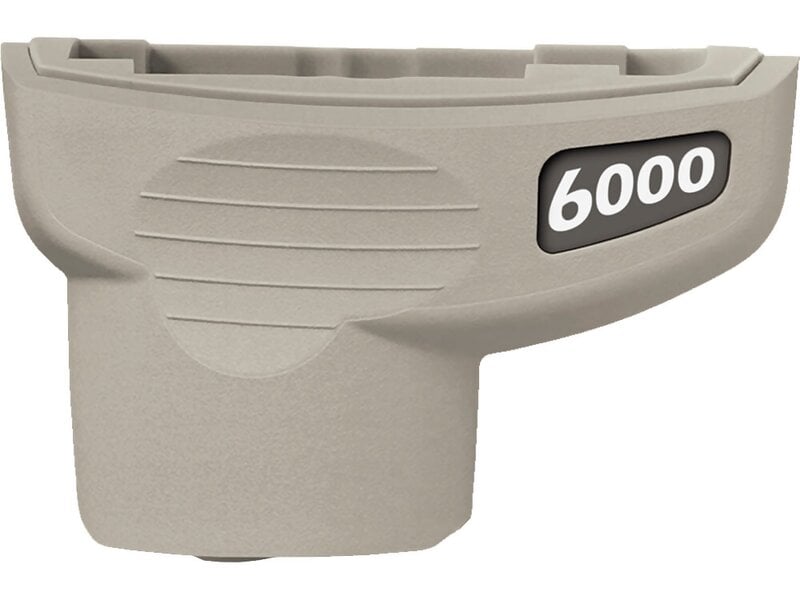

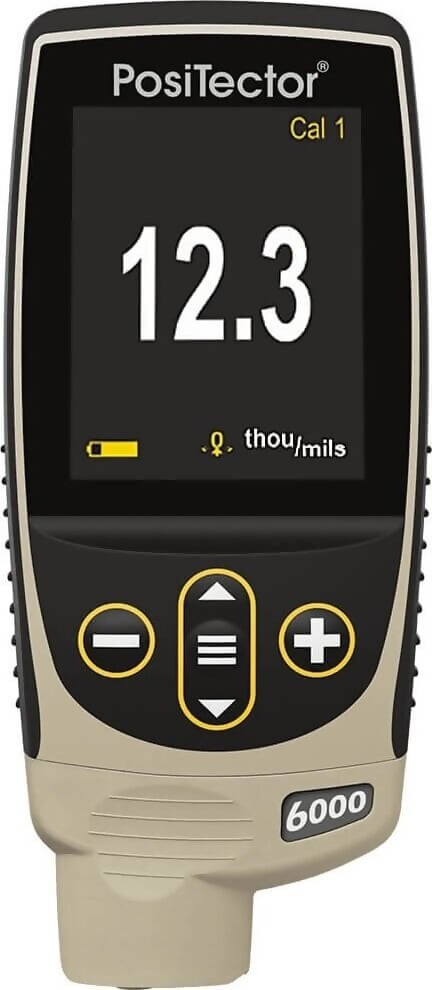

• DeFelsko PRBFN PosiTector 6000 Integral Probe
• Couplant (Ultrasonic Gel)
• Protective Carrying Case and Instructions

Click image to enlarge

Features

Simple

• Ready to measure no adjustment required for most applications
• Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• On-gage help explains menu items at the touch of a button
• RESET feature instantly restores factory settings

Durable

• Weatherproof, dustproof, and water resistant IP65-rated enclosure
• Ergonomic design with durable rubberized grip
• Shock-absorbing, protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe

Accurate

• Responsive transducers provide fast, accurate readings
• Certificate of Calibration showing traceability to NIST or PTB included
• Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808

Versatile

• Auto rotating display with Flip Lock
• Mils/Microns switchable
• Selectable display languages

Powerful

• Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
• Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Range ideal for ignoring unwanted surface echoes
• Screen Capture save 100 screen images for record keeping and review
• Over 20 hours of continuous operation with 3 AAA batteries
• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• PosiSoft USB Drive stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Includes PosiSoft suite of software for viewing and reporting data
• Software Updates via web keep your gage current

Standard Model

• Measure the total thickness of a coating system
• Storage of 1,000 readings per probe stored readings can be viewed or downloaded

Specifications

1. Range limits apply to polymer based coatings only. D probe polyurea range is 50 to 5,000 m (2 to 200 mils).
2. Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
