DeFelsko FTRS3-G PosiTector 6000 FTRS3 Advanced Ferrous Coating Thickness Gage

Model: FTRS3-G with Advanced Body

Range: 0 - 250 mils (0 - 6000 m)

The DeFelsko FTRS3-G PosiTector 6000 FTRS3 Advanced Coating Thickness Gage is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles.

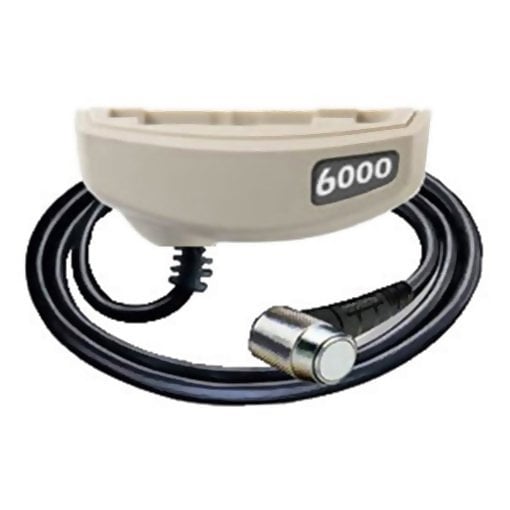

The PosiTector 6000 FTRS3 features a right angle probe for measuring within areas of low headroom. This stainless steel probe is ideal for thick protective coatings such as epoxy, rubber, concrete liners, intumescent fireproofing and more.

The DeFelsko PosiTector 6000 FTRS3 Advanced Ferrous Coating Thickness Gage for general purpose applications features a NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.

line

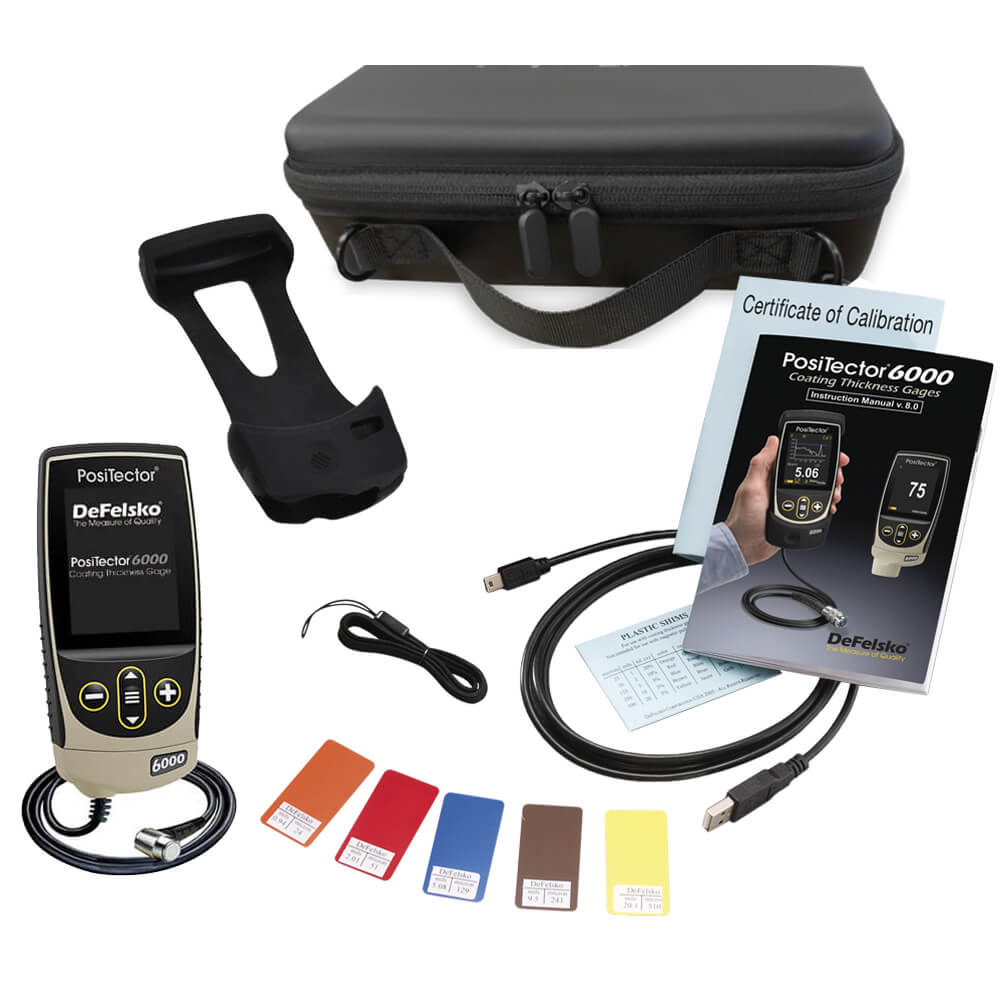

Kit Contents
line

The DeFelsko PosiTector 6000 FTRS3 Advanced Coating Thickness Gage Kit includes everything needed for testing:

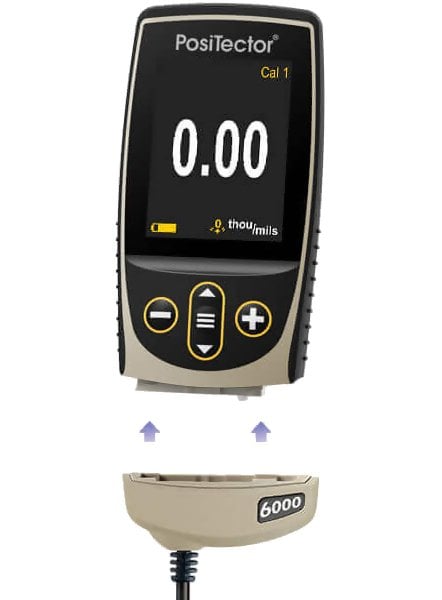

PosiTector Advanced Gage Body BDYADV-G
PosiTector 6000 Probe PRBFTRS-D
Precision plastic shims
Protective rubber holster with belt clip
Wrist strap and protective lens shield
3 AAA alkaline batteries
PosiSoft Software and USB cable
Long Form Certificate of Calibration traceable to NIST or PTB
Convenient carrying case and instructions
Two (2) year warranty

line
Features
line

Simple

NEW Faster measurement speed - 60+ readings per minute
Ready to measure - no calibration adjustment required for most applications
Enhanced one-handed menu navigation
Flashing display - ideal in a noisy environment
RESET feature instantly restores factory settings

Durable

Solvent, acid, oil, water and dust resistant - weatherproof
Wear-resistant probe tip
Shock-absorbing, protective rubber holster with belt clip
Two year warranty on gage body AND probe

Accurate

Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for use on applications that require greater precision
Conforms to national and international standards including ISO and ASTM

Versatile

Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero

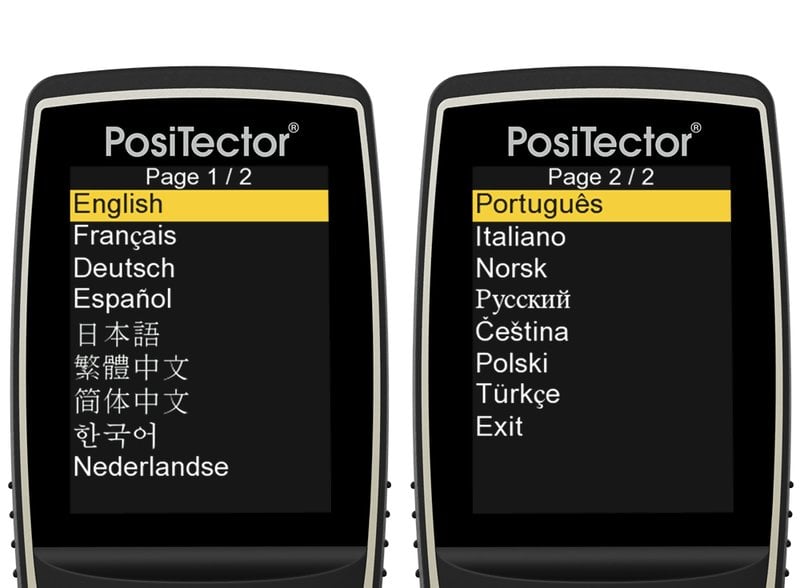

Selectable display languages
High contrast LCD with backlit display
Flip display enables right-side-up viewing
Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
Uses alkaline or rechargeable batteries (built-in charger)
Mils/Microns/mm switchable

Powerful

Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
NEW Enhanced FAST mode - 90+ readings per minute for quick inspection

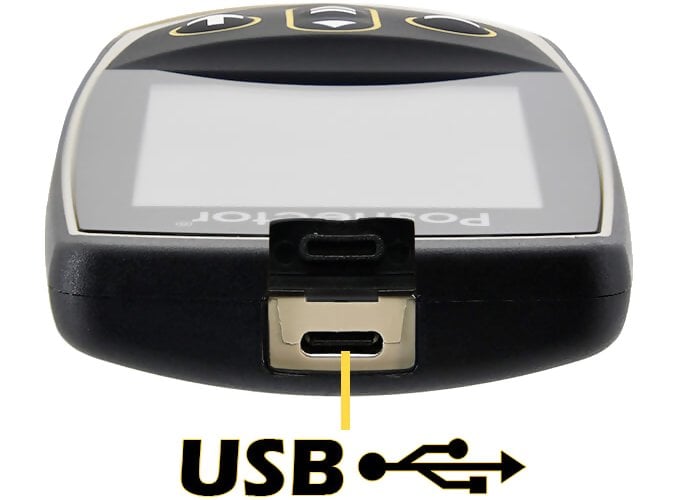

Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
Software Updates via web keep your gage current
Screen Capture record and save image into USB flash memory for record keeping and review

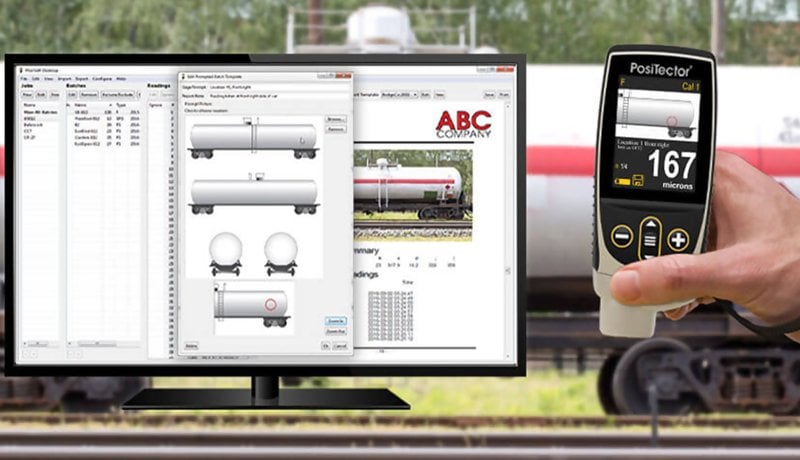

Software Solutions for viewing, analyzing & reporting data
Every stored measurement is date and time stamped

line
Advanced Model Features
line

Includes ALL features as shown above plus:
Storage of 250,000 readings in up to 1,000 batches and sub-batches
Live graphing of measurement data
3 Scan Modes - increase measurement speed to 180+ readings per minute
- Normal - take continuous readings without lifting the probe
- NEW Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
- NEW Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
SSPC-PA 2 feature determines if film thickness over a large area conforms to user-specified min/max levels
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
Onscreen Batch Annotation-add notes, change batch names and more with built-in QWERTY keyboard
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

Specifications

Measuring principle	magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display	High contrast, reversible color LCD
Data Output	USB - "1" & "3" Models Bluetooth - "3" Models
Power	3 AAA batteries, Included
Dimensions	5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight	5.8 oz. (165 g) without batteries
Protection Class	Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty	2 Years
Calibration Certificate	Certificate of Calibration showing traceability to NIST included

Probe Specifications

	Range:	0 - 250 mils
		0 - 6 mm
		0 - 6000
	*Accuracy:	(0.5 mils + 1%) 0 - 100 mils
		(0.5 mil + 3%) > 100 mils
		(0.01 mm + 1%) 0 - 2.5 mm
		(0.01 mm + 3%) > 2.5 mm
