DeFelsko F90ES3-G PosiTector 6000 F90ES3 Advanced Ferrous Coating Thickness Gage
Price: $ 1,670.00
Model: F90S3 with Advanced (3) Body
Range: 0 - 45 mils (0 - 1150 m)

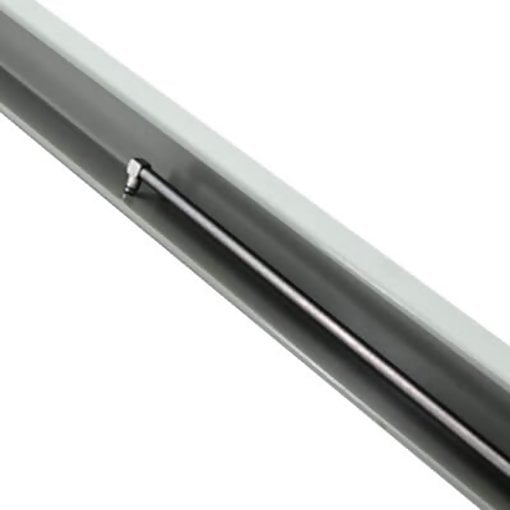

The DeFelsko F90ES3-G PosiTector 6000 F90ES3 Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles. The F90ES3 features an extended 90 degree microprobe for measuring non-magnetic coatings on steel substrates. With a small measuring tip, longest probe length and best thin film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges. The DeFelsko PosiTector 6000 F90ES3 Advanced Body features a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.
Kit Contents

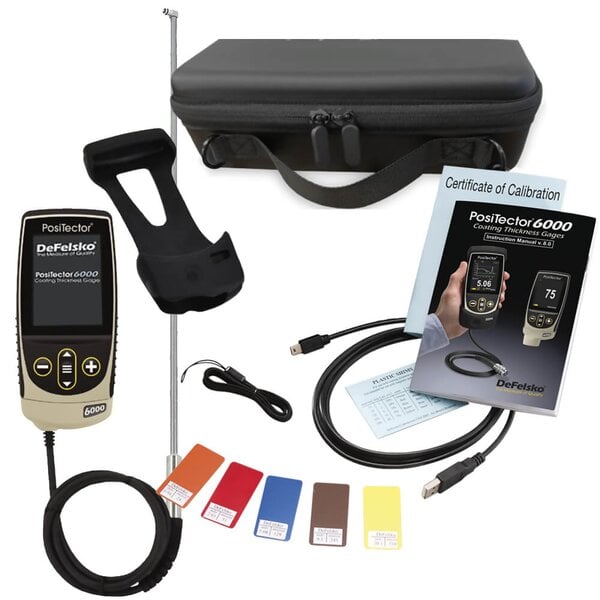

The DeFelsko PosiTector 6000 F90ES3 Advanced Coating Thickness Gage Kit includes everything needed for testing: - PosiTector Advanced Gage Body BDYADV-G
- PosiTector 6000 Probe PRBF90ES-D
- Precision plastic shims
- Protective rubber holster with belt clip
- Wrist strap and protective lens shield
- 3 AAA alkaline batteries
- PosiSoft Software and USB cable
- Long Form Certificate of Calibration traceable to NIST or PTB
- Convenient carrying case and instructions
- Two (2) year warranty
|  |
Features
Simple - Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
- Ready to measure - no adjustment required for most applications
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- Flashing display - ideal in a noisy environment
- RESET feature instantly restores factory settings
Durable - NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
Accurate - Certificate of Calibration showing traceability to NIST or PTB included
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for precision applications
- Conforms to national and international standards including ISO and ASTM

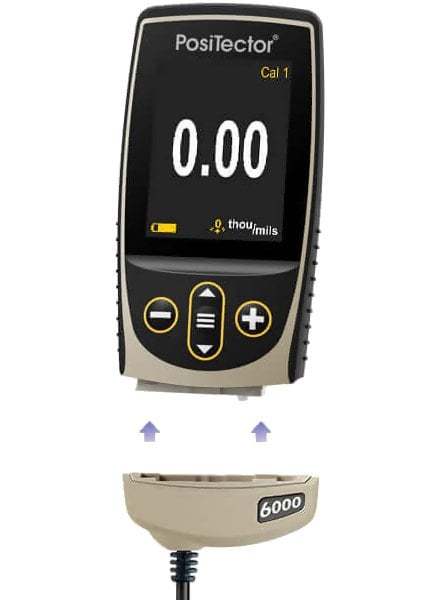

Versatile - PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
- Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

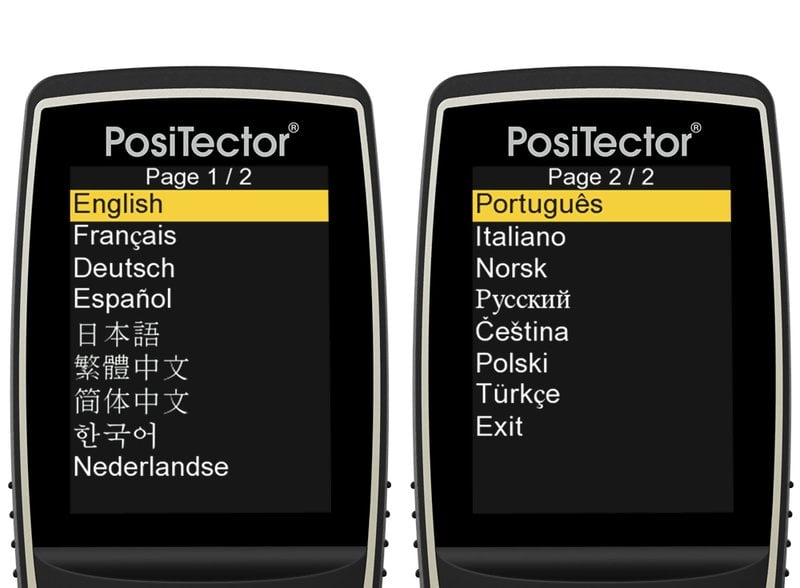

- Selectable display languages
- NEW Auto rotating display with Flip Lock
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Mils/Microns/mm switchable
Powerful - Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
- NEW Screen Capture - save 100 screen images for record keeping and review
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life

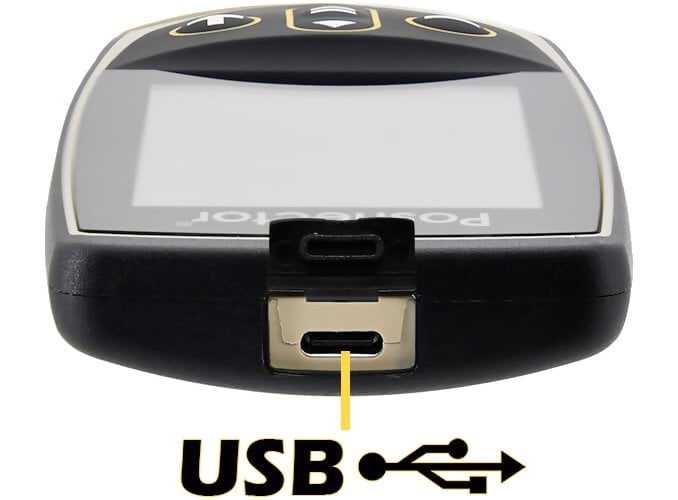

- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- Every stored measurement is date and time stamped
- Software Updates via web keep your gage current
- Software Solutions for viewing, analyzing & reporting data
Advanced Model Features
- Includes ALL features as shown above plus:
- Storage of 250,000 readings in up to 1,000 batches and sub-batches
- Live graphing of measurement data
- 3 Scan Modes - increase measurement speed to 180+ readings per minute
- Normal - take continuous readings without lifting the probe
- NEW Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
- NEW Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
- Multiple stored calibration adjustments for measuring on a variety of substrate conditions
- SSPC-PA 2 feature determines if film thickness over a large area conforms to user-specified min/max levels
- PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
- Onscreen Batch Annotation-add notes, change batch names and more with built-in QWERTY keyboard
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
Specifications
| Measuring principle | magnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous) | | Display | High contrast, reversible color LCD | | Data Output | USB - "1" & "3" Models
Bluetooth - "3" Models | | Power | 3 AAA batteries, Included | | Dimensions | 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm) | | Weight | 5.8 oz. (165 g) without batteries | | Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant | | Warranty | 2 Years | | Calibration Certificate | Certificate of Calibration showing traceability to NIST included |
Probe Specifications
 | Range: | 0 - 45 mils | | 0 - 1150 | | *Accuracy: | (0.02 mils + 1%) 0 - 4 mils | | (0.1 mils + 3%) > 4 mils | | (.5 + 1%) 0 - 100 | | (2 + 3%) > 100 |

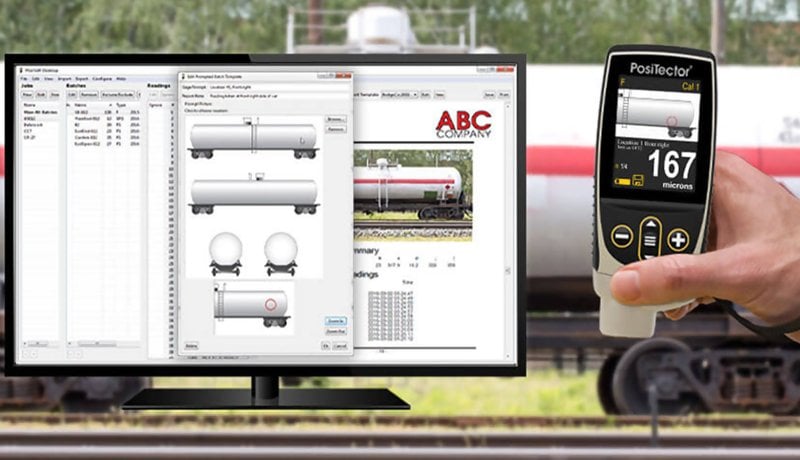

PosiSoft Suite of Software
