Coating Thickness Gages | Buy DeFelsko N90S3-G Positector 6000 N90S3 Coating Thickness Gauge with Advanced Body, 90° Microprobe, Measures Coatings on Non-Ferrous Metals, 0

DeFelsko N90S3-G PosiTector 6000 N90S3 Advanced Non-Ferrous Coating Thickness Gage

Model: N90S3 with Advanced Body

Substrate: Non-Ferrous Metals

Range: 0-25 mils (0-625 m)

The DeFelsko N90S3-G PosiTector 6000 N90S3 Advanced Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on ferrous and or non-ferrous metals accurately and quickly using eddy current principles.

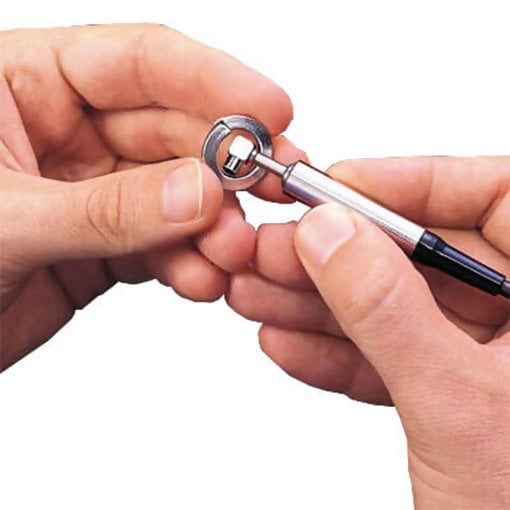

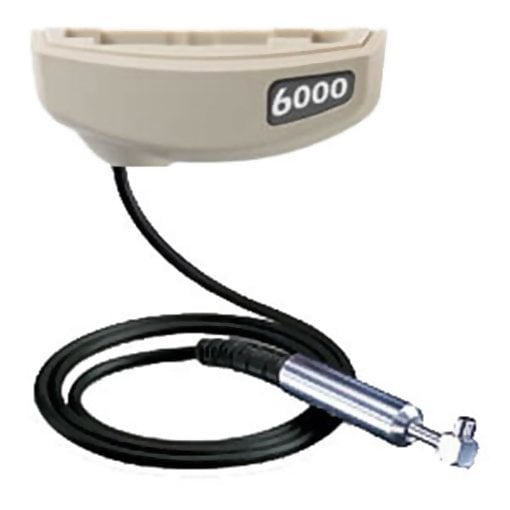

The N90S3 features a right angle probe for measuring within areas of low headroom. With a small measuring tip and best thin-film accuracy, the DeFelsko PosiTector 6000 N90S3 is ideal for measuring on small parts, hard-to-reach areas, or close to edges.

The DeFelsko N90S3-G PosiTector 6000 N90S3 Advanced Non-Ferrous Coating Thickness Gauges has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.

line
Kit Contents
line

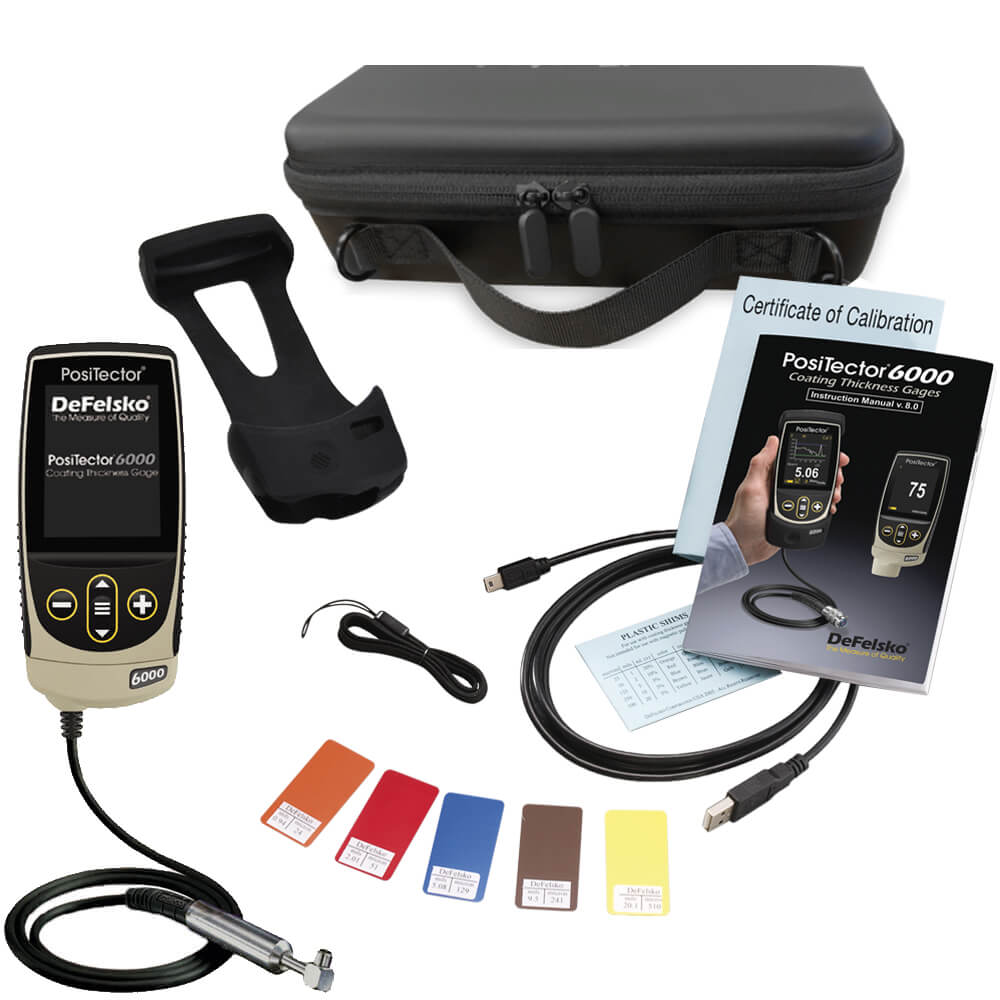

The DeFelsko PosiTector 6000N90S3 Advanced Coating Thickness Gage Kit includes everything needed for testing:

PosiTector Advanced Gage Body BDYADV-G
PosiTector 6000 Probe PRBN90S-D
Precision plastic shims
Protective rubber holster with belt clip
Wrist strap and protective lens shield
3 AAA alkaline batteries
PosiSoft Software and USB cable
Long Form Certificate of Calibration traceable to NIST or PTB
Convenient carrying case and instructions
Two (2) year warranty

line
Features
line

Simple

Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
Ready to measure - no adjustment required for most applications
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
Flashing display - ideal in a noisy environment
RESET feature instantly restores factory settings

Durable

NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
NEW Ergonomic design with durable rubberized grip
Wear-resistant probe tip
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe

Accurate

Certificate of Calibration showing traceability to NIST or PTB included
Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for precision applications
Conforms to national and international standards including ISO and ASTM

Versatile

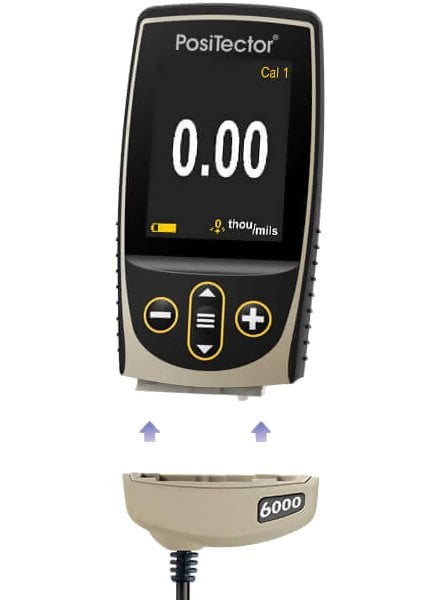

PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

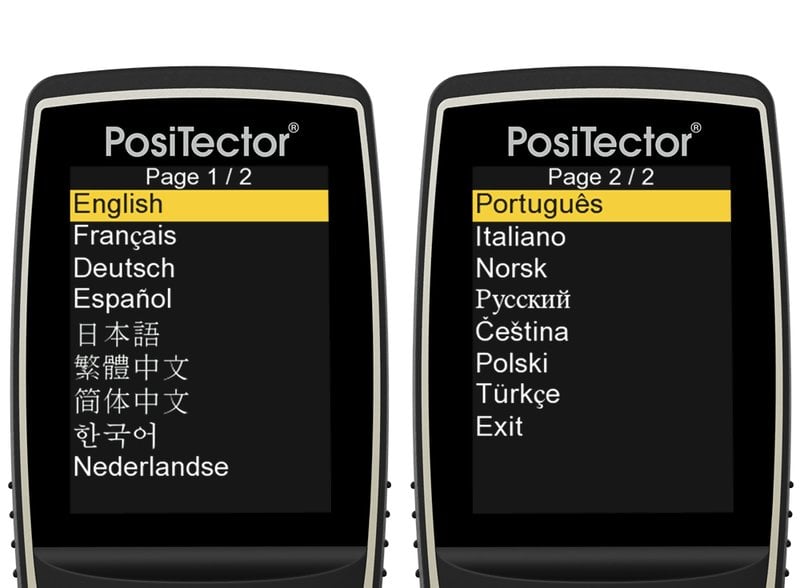

Selectable display languages
NEW Auto rotating display with Flip Lock
Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
Mils/Microns/mm switchable

Powerful

Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
NEW Screen Capture - save 100 screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
NEW Instant-on feature quickly powers up the gage if recently powered down
NEW Up to 30% longer battery life

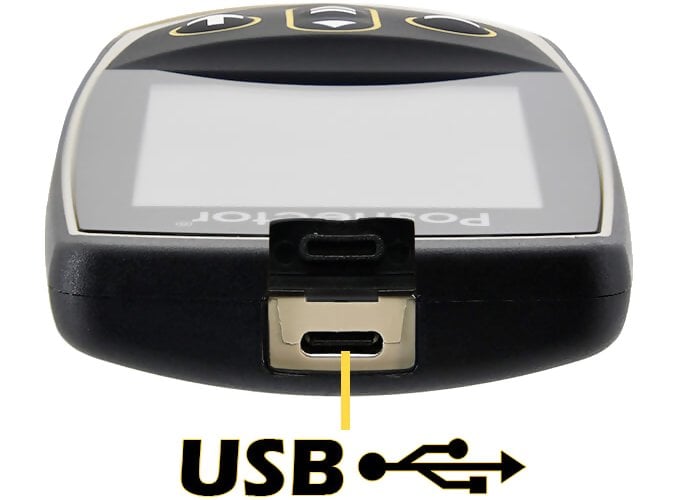

USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
Every stored measurement is date and time stamped
Software Updates via web keep your gage current
Software Solutions for viewing, analyzing & reporting data

line
Advanced Model Features
line

NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches

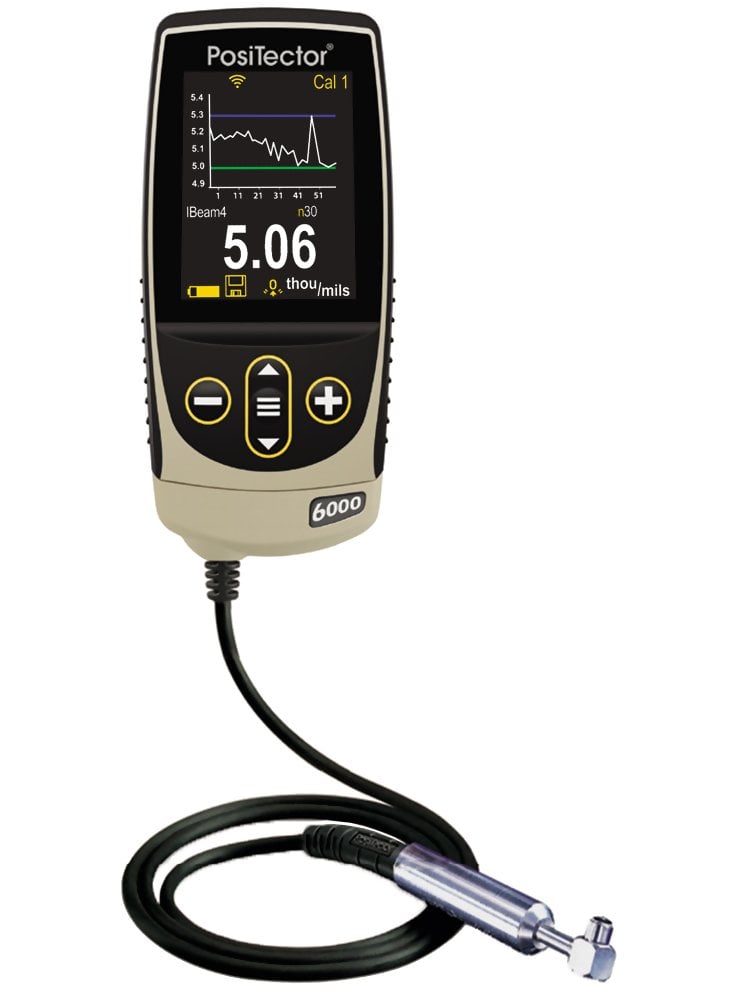

Live graphing of measurement data

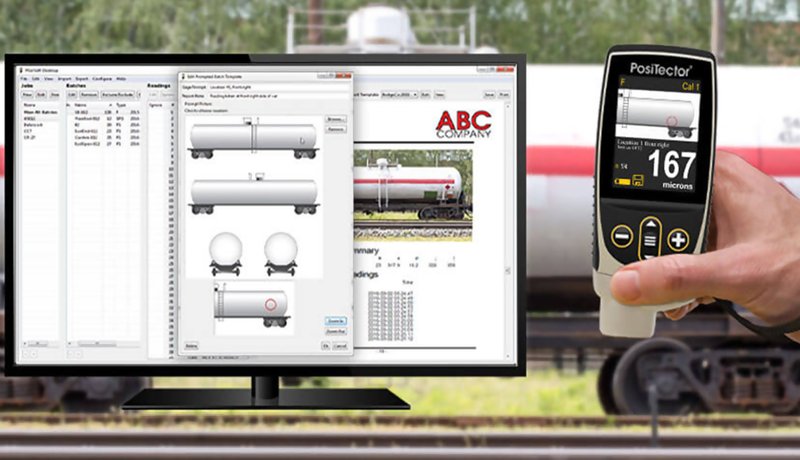

NEW Prompted Batch Mode-create pre-defined batches with on-screen text and image prompts for each reading
3 Scan Modes - increase measurement speed to 180+ readings per minute
- Normal - take continuous readings without lifting the probe
- Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
- Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

Specifications

Measuring principle	magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display	High contrast, reversible color LCD
Data Output	USB - "1" & "3" Models Bluetooth - "3" Models
Power	3 AAA batteries, Included
Dimensions	5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight	5.8 oz. (165 g) without batteries
Protection Class	Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty	2 Years
Calibration Certificate	Certificate of Calibration showing traceability to NIST included

Probe Specifications

	Range:	0 - 25 mils
		0 - 625
	*Accuracy:	(0.02 mils + 1%) 0 - 4 mils
		(0.1 mils + 3%) > 4 mils
		(.5 + 1%) 0 - 100
		(2 + 3%) > 100
