DeFelsko FN1-G PosiTector 6000 FN1 Coating Thickness Gauge with Standard Body, Integral Probe, Measures Coatings on All Metals, 0-60 mils



Price: $ 975.00

DeFelsko FN1-G PosiTector 6000 FN1 Standard All Metals Coating Thickness Gage
Model: FN1-G with Standard Body
Storage: 1,000 readings per probe - stored readings can be viewed or downloaded
Substrate: All Metals
Range: 0 - 60 mils (0 - 1500 m)

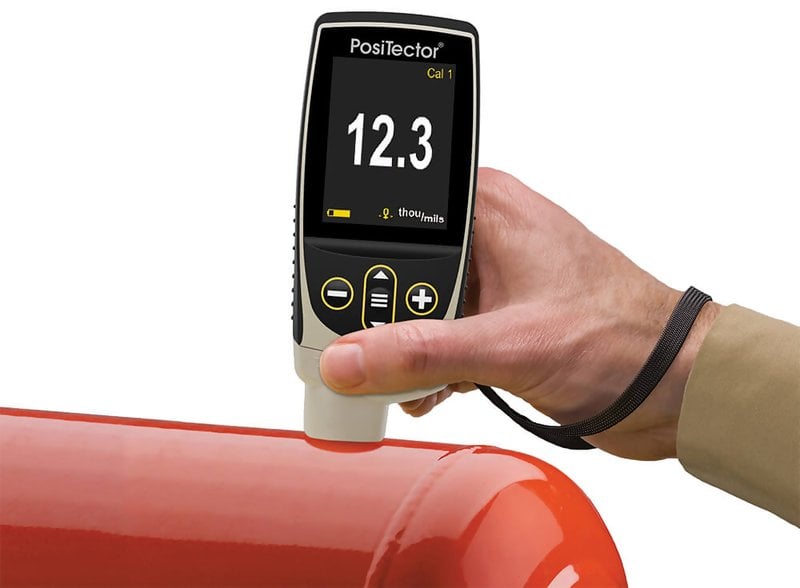

The DeFelsko FN1-G PosiTector 6000 FN1 Standard Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on ferrous and non-ferrous metals accurately and quickly using magnetic induction and eddy current principles.

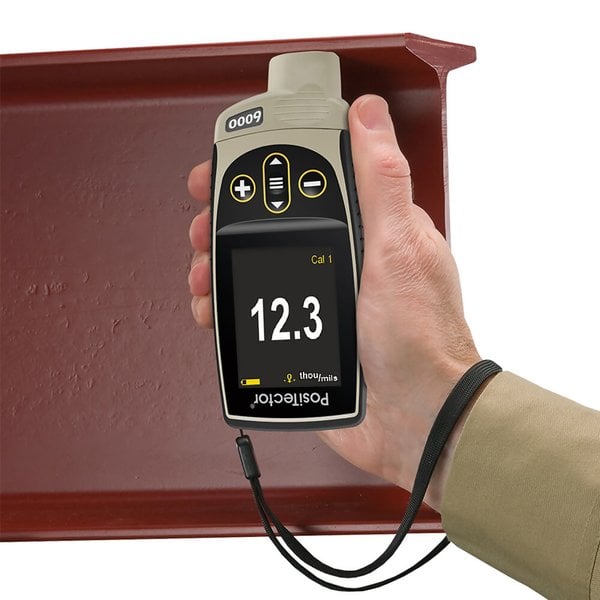

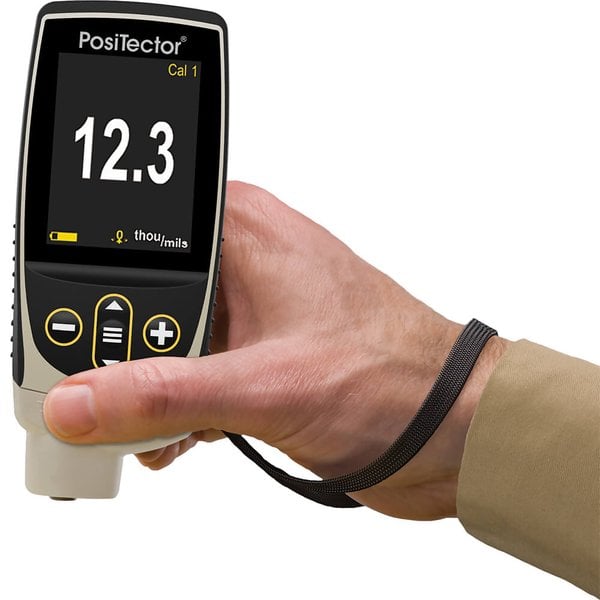

The DeFelsko PosiTector 6000 FN1 Integral Probe design offers maximum convenience and simplicity allowing for one-hand use, eliminating the external probe and cable which can be cumbersome in certain applications.

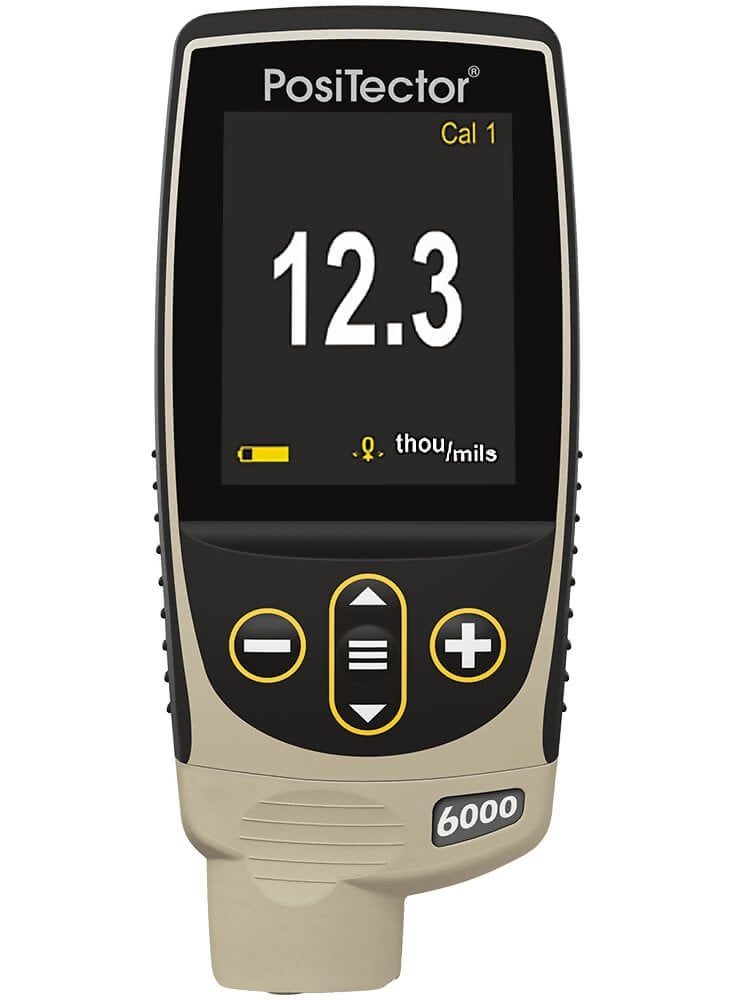

The DeFelsko PosiTector 6000 FN1 features a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1,000 in one group memory reading storage capacity and USB data output.


line

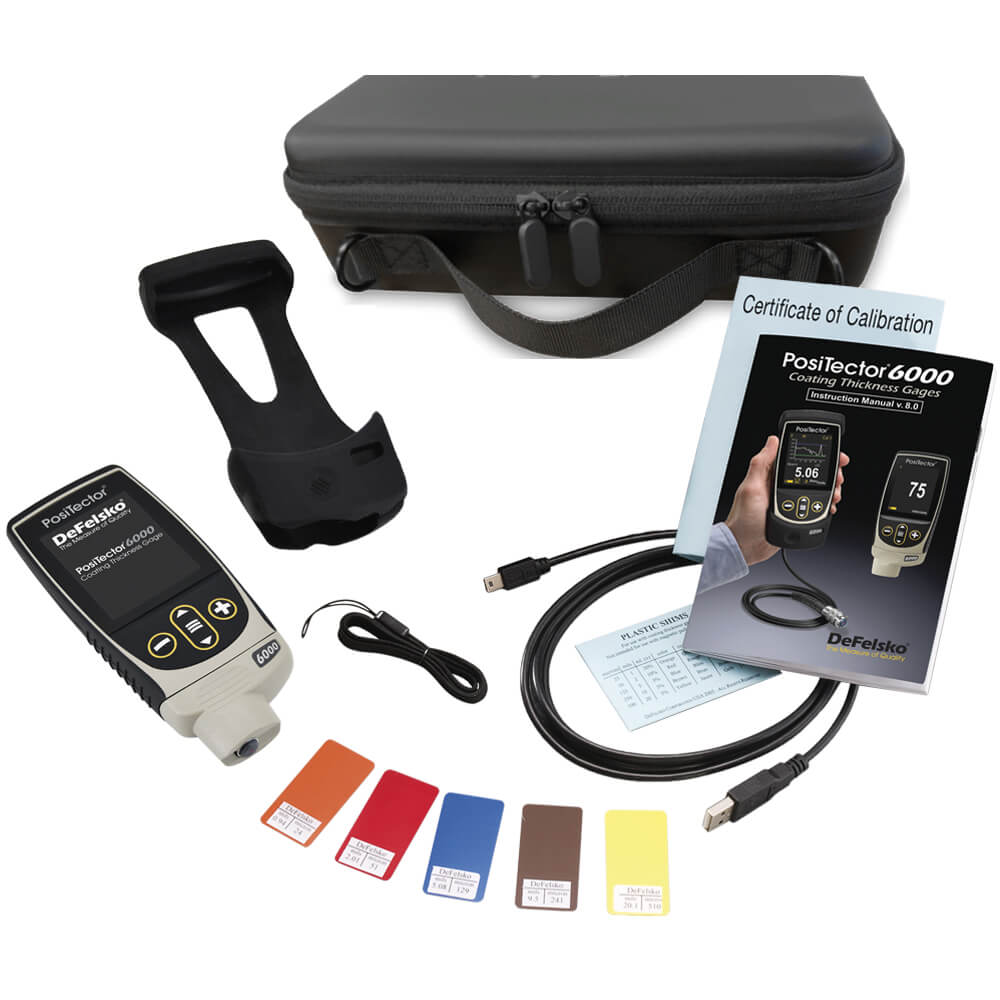

Kit Contents
line

The DeFelsko PosiTector 6000 FN1 Standard Coating Thickness Gage Kit includes everything needed for testing:

  • PosiTector Standard Gage Body BDYSTD-G

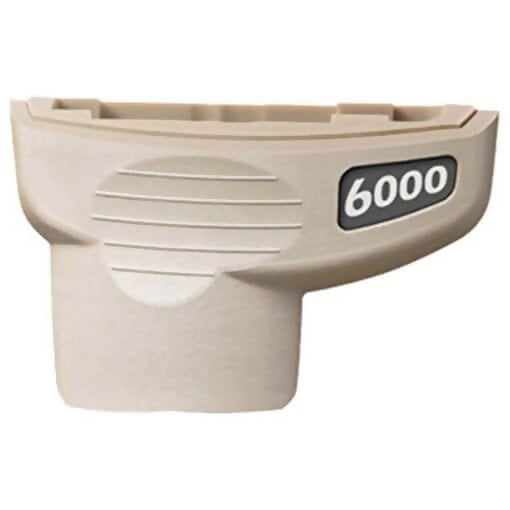

  • PosiTector 6000 Probe PRBFN-D
  • Precision plastic shims
  • Protective rubber holster with belt clip
  • Wrist strap and protective lens shield
  • 3 AAA alkaline batteries
  • PosiSoft Software and USB cable
  • Long Form Certificate of Calibration traceable to NIST or PTB
  • Convenient carrying case and instructions
  • Two (2) year warranty


line
Features
line

Simple

  • Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
  • Ready to measure - no adjustment required for most applications
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • Flashing display - ideal in a noisy environment
  • RESET feature instantly restores factory settings

Durable

  • NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to NIST or PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for precision applications
  • Conforms to national and international standards including ISO and ASTM

Versatile

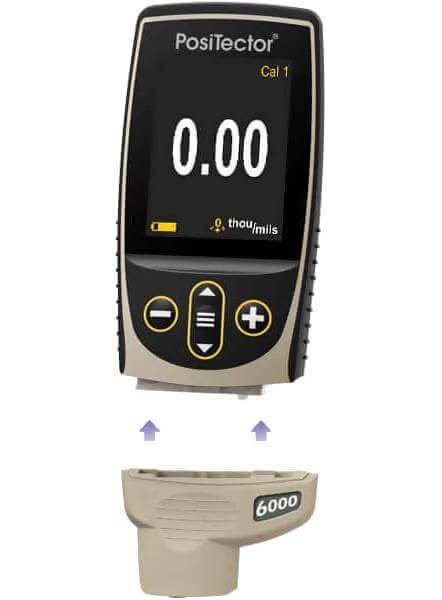

  • PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
  • Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

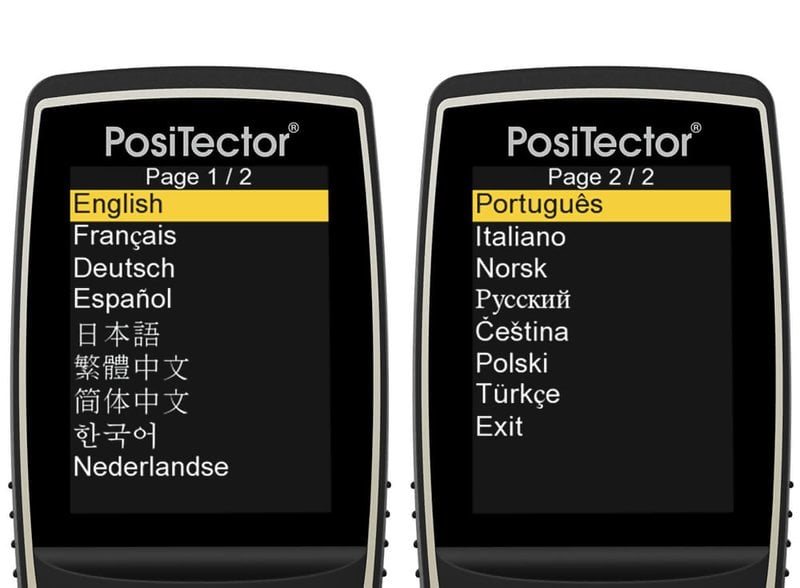

  • Selectable display languages
  • NEW Auto rotating display with Flip Lock
  • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
  • Mils/Microns/mm switchable

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
  • NEW Screen Capture - save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life

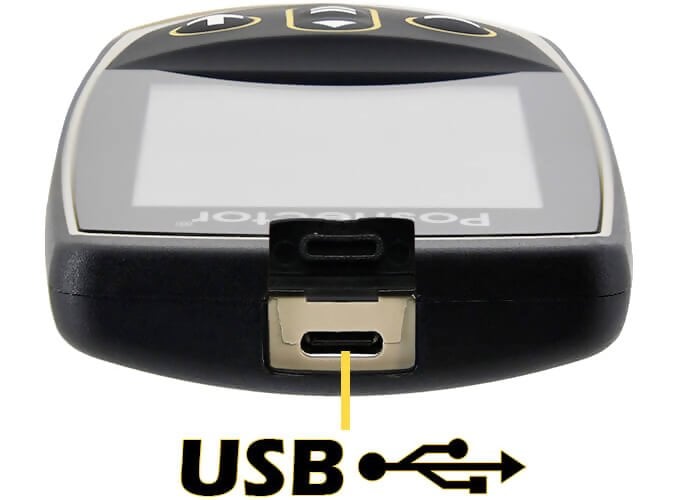

  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • Every stored measurement is date and time stamped
  • Software Updates via web keep your gage current
  • Software Solutions for viewing, analyzing & reporting data


line
Standard Model Features
line

  • Includes ALL features as shown above plus:
  • Storage of 1,000 readings per probe - stored readings can be viewed or downloaded



Specifications

Measuring principlemagnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous)
DisplayHigh contrast, reversible color LCD
Data OutputUSB - "1" & "3" Models
Bluetooth - "3" Models
Power3 AAA batteries, Included
Dimensions5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight5.8 oz. (165 g) without batteries
Protection ClassMeets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty2 Years
Calibration CertificateCertificate of Calibration showing traceability to NIST included



Probe Specifications

Range:0 - 60 mils
0 - 1500
*Accuracy: (0.05 mils + 1%) 0 - 2 mils
(0.1 mils + 1%) > 2 mils
(1 + 1%) 0 - 50
(2 + 1%) > 50



PosiSoft Suite of Software

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


line
FAQ's - Frequently Asked Questions
line

Click to View DeFelsko PosiTector 6000 Frequently Asked Questions

line
Related Products
line

DeFelsko CertifiedCoated Metal Plates

  • Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage

line

DeFelsko SMLINK
PosiTector SmartLink Wireless Module

  • Wirelessly connect PosiTector probes to smart devices wit the Positector SmartLink


line
Downloads
line

DeFelsko PosiTector 6000 Coating Thickness Gages - FN Ordering Guide
DeFelsko PosiTector 6000 Coating Thickness Gages - Full Instruction Manual
DeFelsko PosiTector 6000 Coating Thickness Gages - Literature
DeFelsko PosiTector 6000 Coating Thickness Gages - Quick Guide
DeFelsko PosiTector 6000 Coating Thickness Gages - Online Instructions Manual
