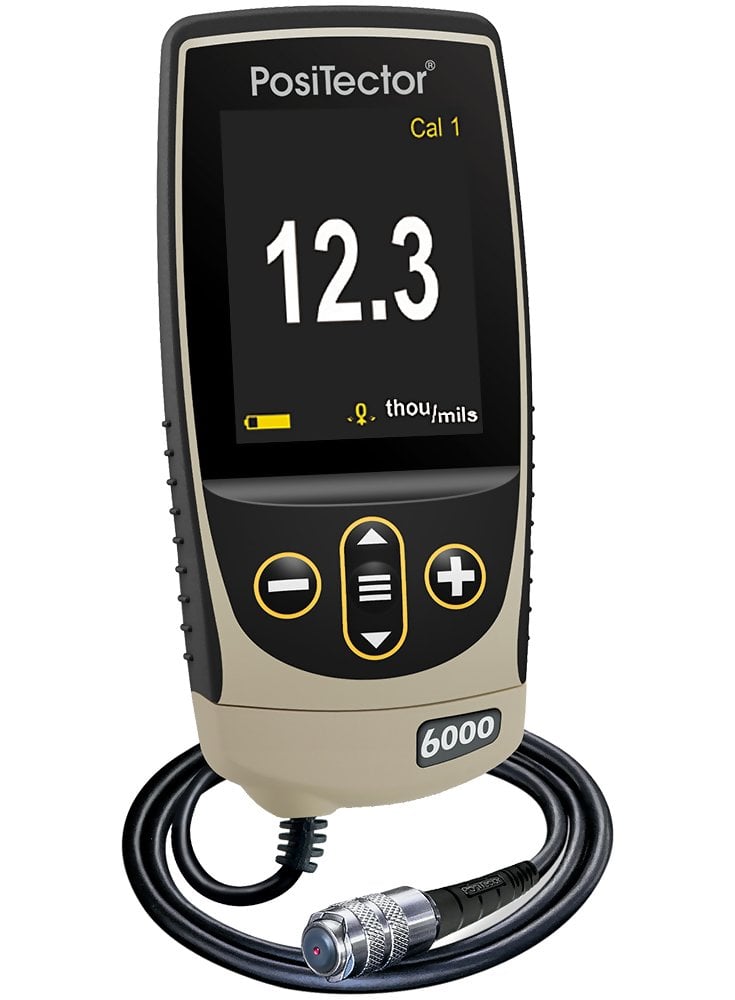

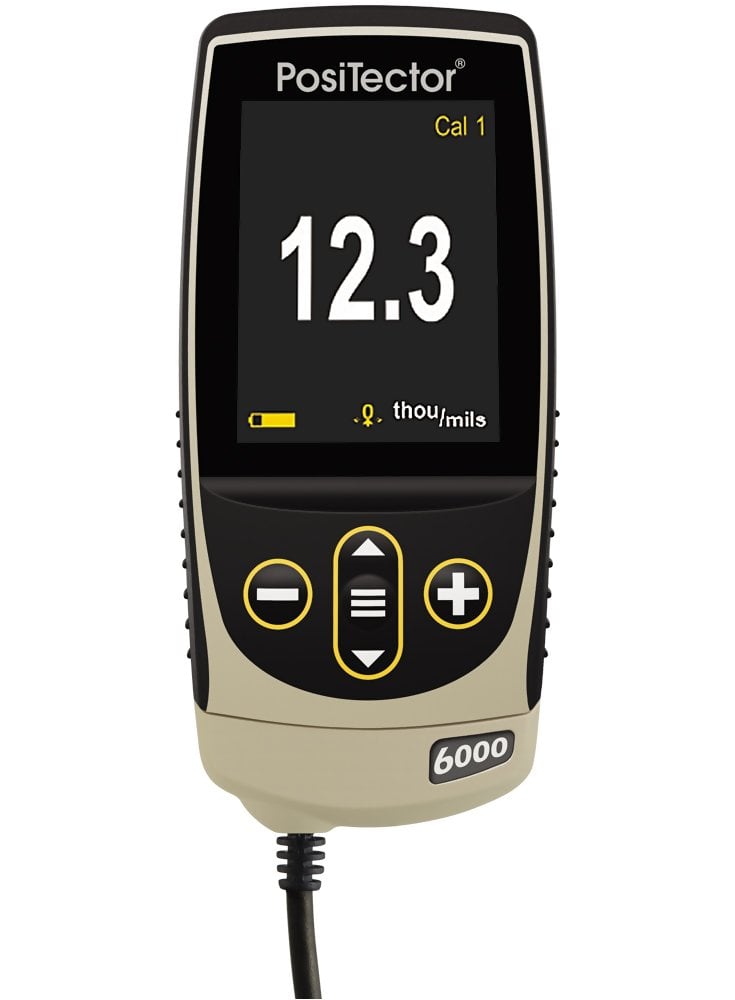

DeFelsko NS1-G Positector 6000 NS1 Coating Thickness Gauge with Standard Body, Cabled Probe, Measures Coatings on Non-Ferrous Metals, 0-60 mils



Price: $ 795.00

DeFelsko NS1-G Positector 6000 NS1 Standard Non-Ferrous Coating Thickness Gage
Model: NS1 with Standard Body
Storage: 1,000 readings per probe - stored readings can be viewed or downloaded
Substrate: Non-Ferrous Metals
Range: 0 - 60 mils (0 - 1500 m)

The DeFelsko NS1-GPositector 6000 NS1 Standard Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on non-ferrous metals accurately and quickly using eddy current principles.

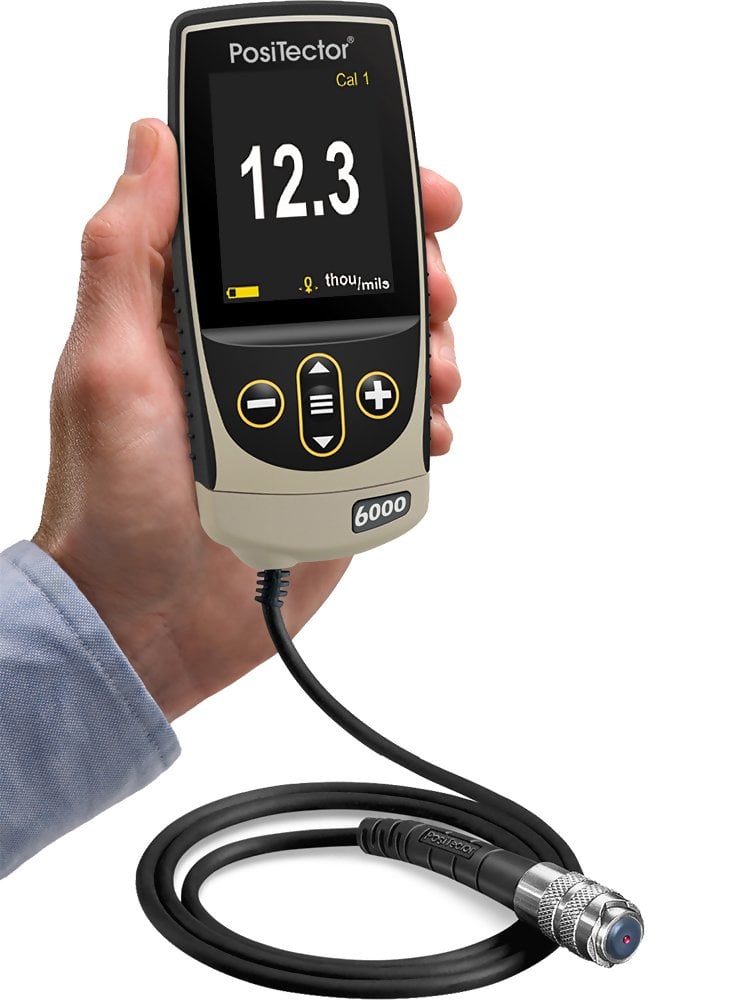

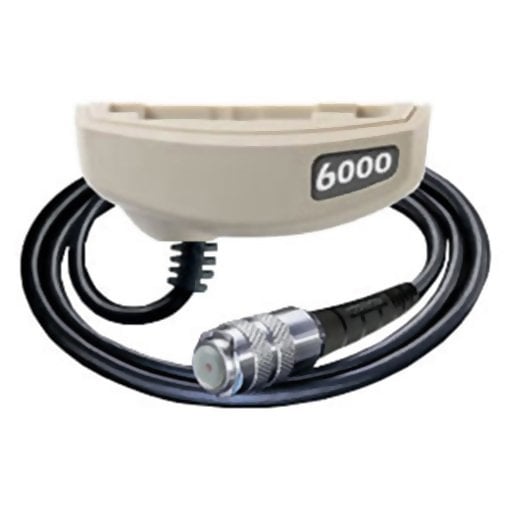

The DeFelsko PosiTector 6000 NS1 features a constant-pressure, stainless steel cabled probe hermetically sealed to be totally waterproof - ideal for underwater use.

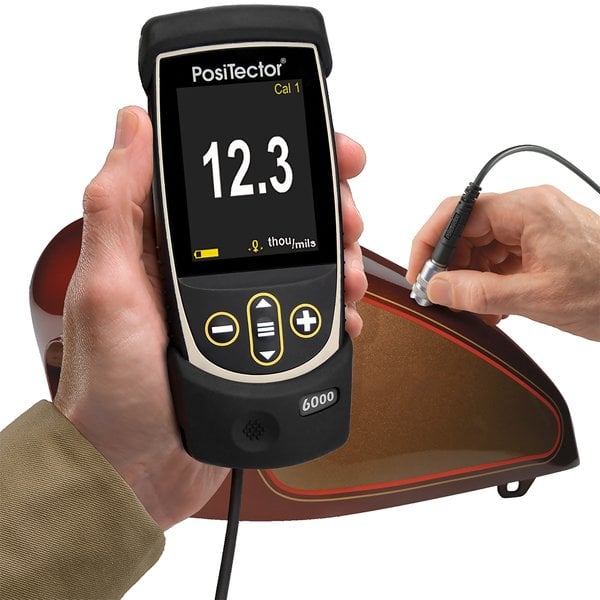

The DeFelsko Positector 6000 NS1 has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1,000 in one group memory reading storage capacity and USB data output.


line
Kit Contents
line

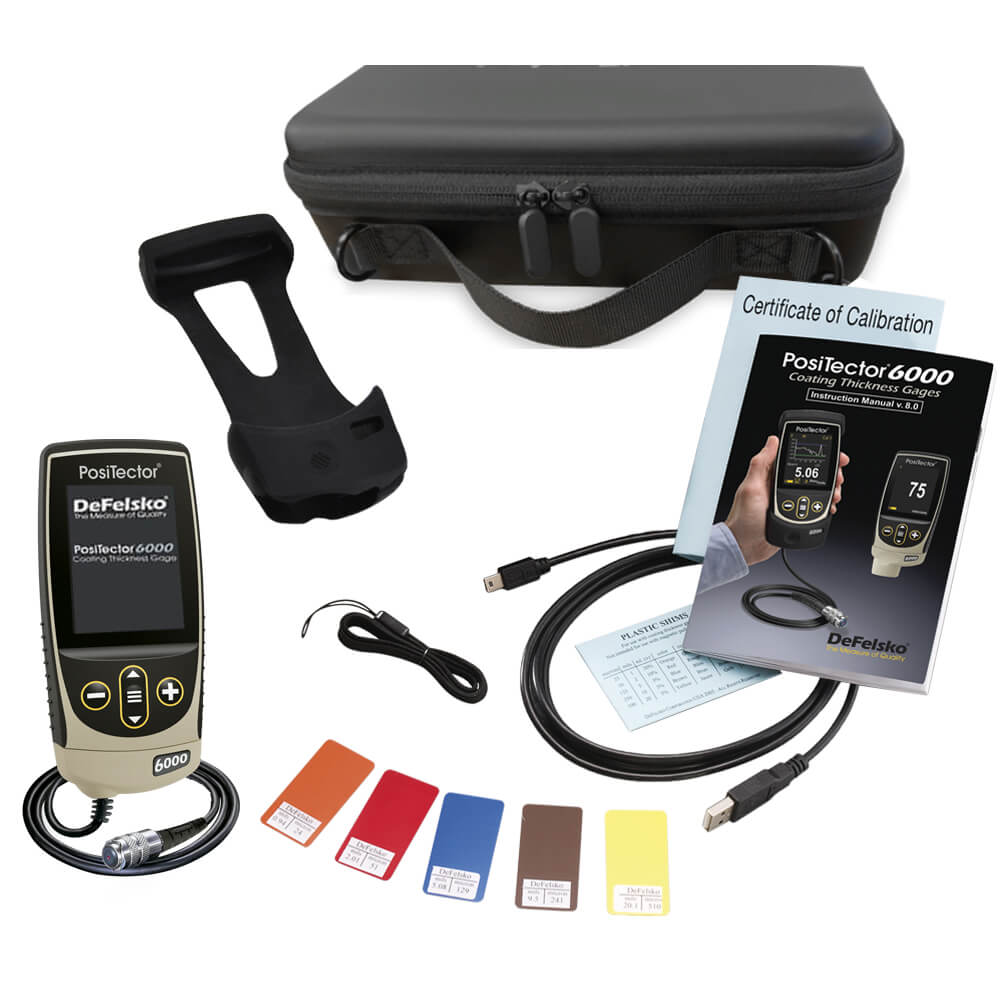

The DeFelsko PosiTector 6000 NS1 Standard Coating Thickness Gage Kit includes everything needed for testing:

  • PosiTector Standard Gage Body BDYSTD-G

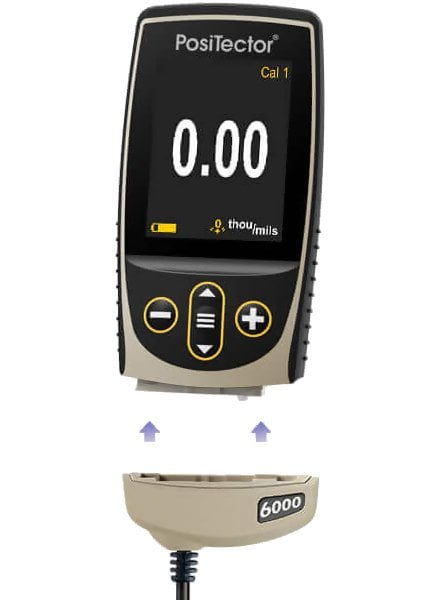

  • PosiTector 6000 Probe PRBNS-D
  • Precision plastic shims
  • Protective rubber holster with belt clip
  • Wrist strap and protective lens shield
  • 3 AAA alkaline batteries
  • PosiSoft Software and USB cable
  • Long Form Certificate of Calibration traceable to NIST or PTB
  • Convenient carrying case and instructions
  • Two (2) year warranty


line
Features
line

Simple

  • NEW Faster measurement speed - 60+ readings per minute
  • Ready to measure - no calibration adjustment required for most applications
  • Enhanced one-handed menu navigation
  • Flashing display - ideal in a noisy environment
  • RESET feature instantly restores factory settings

Durable

  • Solvent, acid, oil, water and dust resistant - weatherproof
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster with belt clip
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for use on applications that require greater precision
  • Conforms to national and international standards including ISO and ASTM

Versatile

  • Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero

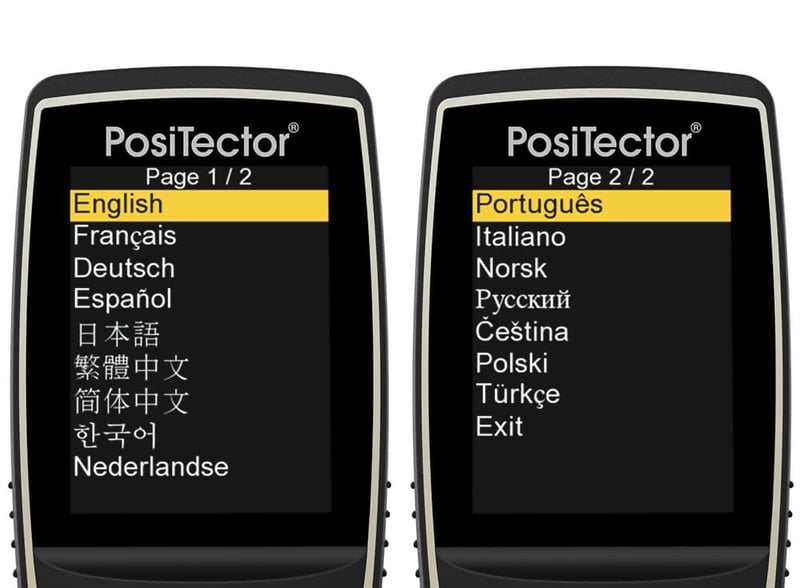

  • Selectable display languages
  • High contrast LCD with backlit display
  • Flip display enables right-side-up viewing
  • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
  • Uses alkaline or rechargeable batteries (built-in charger)

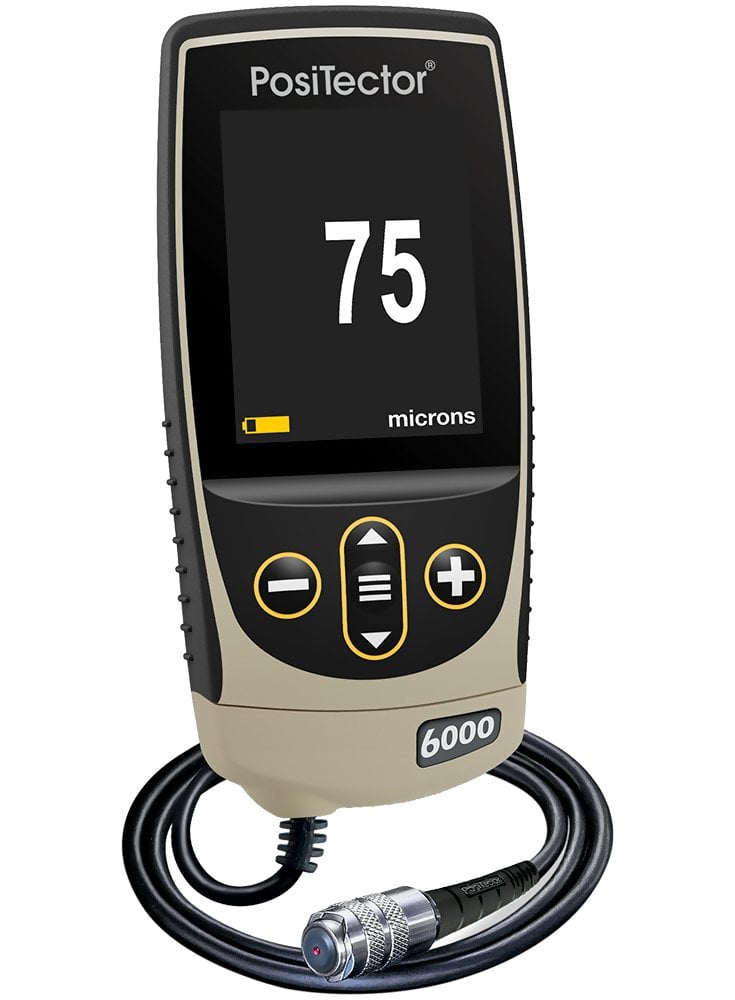

  • Mils/Microns/mm switchable

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Enhanced FAST mode - 90+ readings per minute for quick inspection

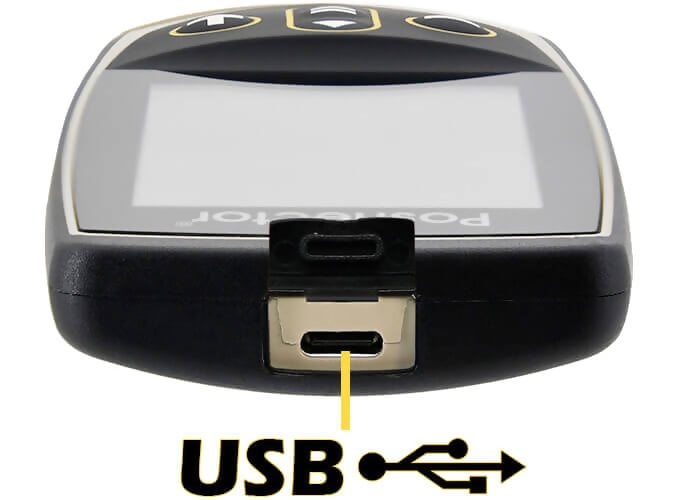

  • Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • Software Updates via web keep your gage current
  • Screen Capture record and save image into USB flash memory for record keeping and review
  • Software Solutions for viewing, analyzing & reporting data
  • Every stored measurement is date and time stamped


line
Standard Model Features
line

  • Includes ALL features as shown above plus:
  • Storage of 1,000 readings per probe - stored readings can be viewed or downloaded



Specifications

Measuring principlemagnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous)
DisplayHigh contrast, reversible color LCD
Data OutputUSB - "1" & "3" Models
Bluetooth - "3" Models
Power3 AAA batteries, Included
Dimensions5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight5.8 oz. (165 g) without batteries
Protection ClassMeets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty2 Years
Calibration CertificateCertificate of Calibration showing traceability to NIST included



Probe Specifications

Range: 0 - 60 mils
0 - 1500
Accuracy: (0.05 mils + 1%) 0 - 2 mils
(0.1 mils + 1%) > 2 mils
(1 + 1%) 0 - 50
(2 + 1%) > 50
