DeFelsko FRS3-G PosiTector 6000 FRS3 Coating Thickness Gauge with Advanced Gage Body, Right Angle Cabled Probe FRS, Measures Coatings on Ferrous Metals, 0-60 mils
Price: $ 1,330.00
Model: FRS3-G with Advanced Body
Storage: 250,000 readings in up to 1,000 batches and sub-batches
Substrate: Ferrous Metals
Range: 0 - 60 mils (0 - 1500 m)
The DeFelsko FRS3-G PosiTector 6000 FRS3 Advanced Coating Thickness Gage is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles. The PosiTector 6000 FRS3 features a right angle probe for measuring within areas of low headroom. This constant-pressure, stainless steel probe is hermetically sealed to be totally waterproof - ideal for underwater use. The DeFelsko PosiTector 6000 FRS3 Advanced Ferrous Coating Thickness Gage for general purpose applications features a NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.

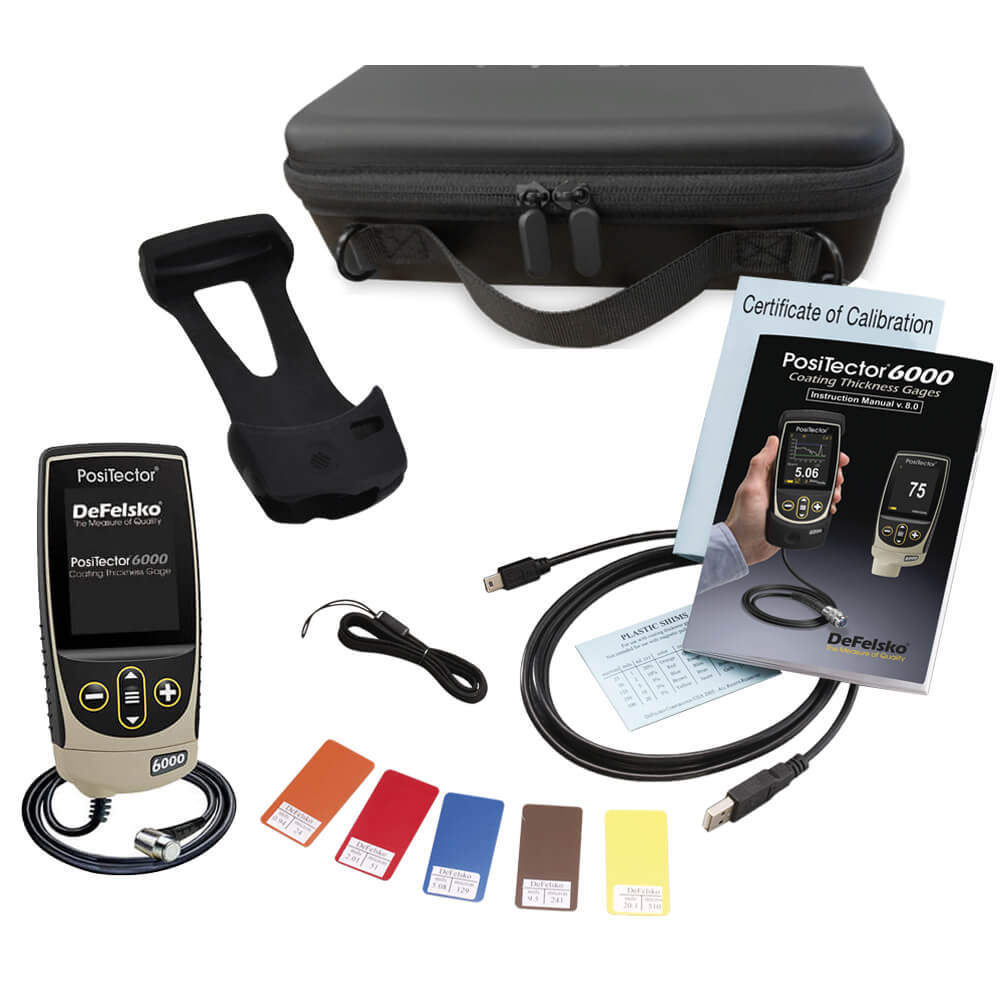

Kit Contents
The DeFelsko PosiTector 6000 FRS3 Advanced Coating Thickness Gage Kit includes everything needed for testing: - PosiTector Advanced Gage Body BDYADV-G
- PosiTector 6000 Probe PRBFRS-D
- Precision plastic shims
- Protective rubber holster with belt clip
- Wrist strap and protective lens shield
- 3 AAA alkaline batteries
- PosiSoft Software and USB cable
- Long Form Certificate of Calibration traceable to NIST or PTB
- Convenient carrying case and instructions
- Two (2) year warranty
|  |
Features
Simple - NEW Faster measurement speed - 60+ readings per minute
- Ready to measure - no calibration adjustment required for most applications
- Enhanced one-handed menu navigation
- Flashing display - ideal in a noisy environment
- RESET feature instantly restores factory settings
Durable - Solvent, acid, oil, water and dust resistant - weatherproof
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Accurate - Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for use on applications that require greater precision
- Conforms to national and international standards including ISO and ASTM
Versatile - Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero

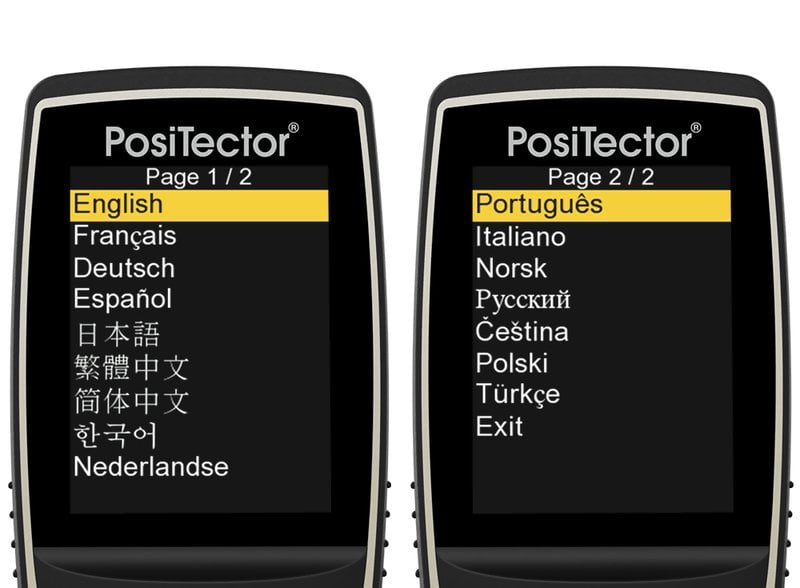

- Selectable display languages
- High contrast LCD with backlit display
- Flip display enables right-side-up viewing
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Uses alkaline or rechargeable batteries (built-in charger)
- Mils/Microns/mm switchable
Powerful - Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- NEW Enhanced FAST mode - 90+ readings per minute for quick inspection

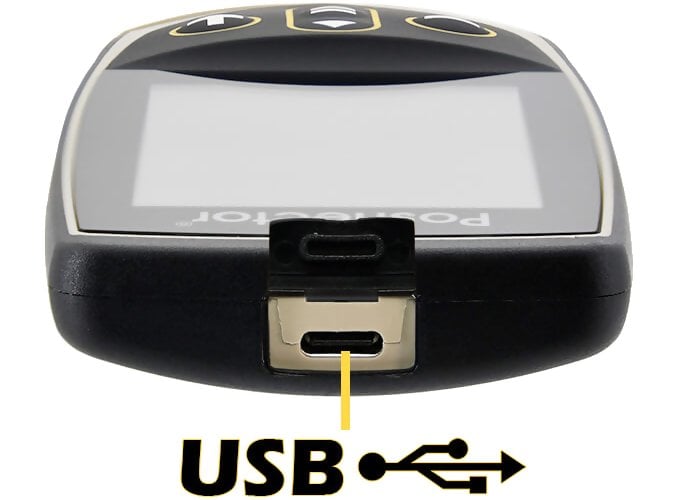

- Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- Software Updates via web keep your gage current
- Screen Capture record and save image into USB flash memory for record keeping and review
- Software Solutions for viewing, analyzing & reporting data
- Every stored measurement is date and time stamped
Advanced Model Features
- Includes ALL features as shown above plus:
- Storage of 250,000 readings in up to 1,000 batches and sub-batches
- Live graphing of measurement data
- 3 Scan Modes - increase measurement speed to 180+ readings per minute
- Normal - take continuous readings without lifting the probe
- NEW Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
- NEW Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
- Multiple stored calibration adjustments for measuring on a variety of substrate conditions
- SSPC-PA 2 feature determines if film thickness over a large area conforms to user-specified min/max levels
- PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
- Onscreen Batch Annotation-add notes, change batch names and more with built-in QWERTY keyboard
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
Specifications
| Measuring principle | magnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous) | | Display | High contrast, reversible color LCD | | Data Output | USB - "1" & "3" Models
Bluetooth - "3" Models | | Power | 3 AAA batteries, Included | | Dimensions | 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm) | | Weight | 5.8 oz. (165 g) without batteries | | Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant | | Warranty | 2 Years | | Calibration Certificate | Certificate of Calibration showing traceability to NIST included |
Probe Specifications
 | Range: | 0 - 60 mils | | 0 - 1500 | | *Accuracy: | (0.05 mils + 1%) 0 - 2 mils | | (0.1 mils + 1%) > 2 mils | | (1 + 1%) 0 - 50 | | (2 + 1%) > 50 |

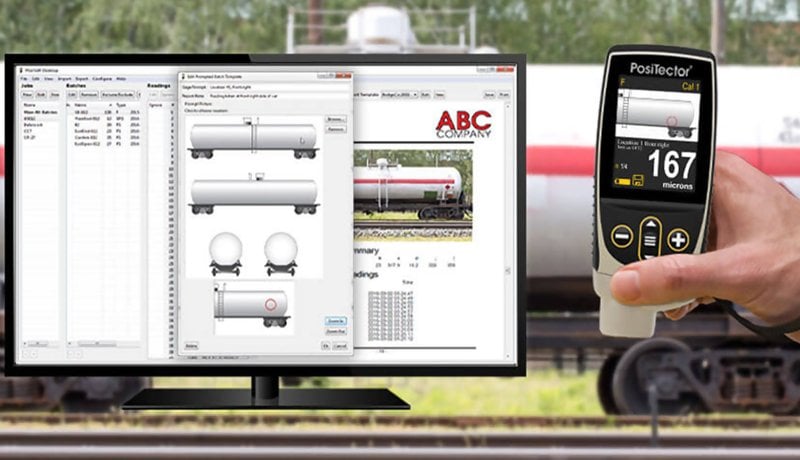

PosiSoft Suite of Software
Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More
FAQ's - Frequently Asked Questions
Click to View DeFelsko PosiTector 6000Frequently Asked Questions
