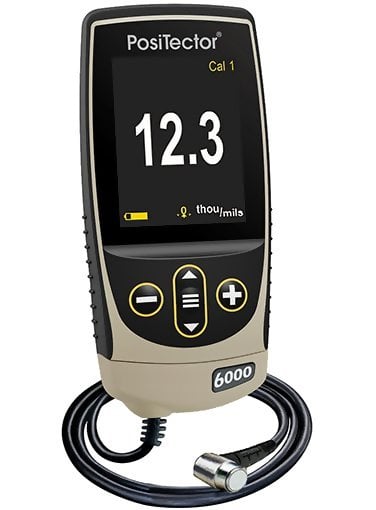

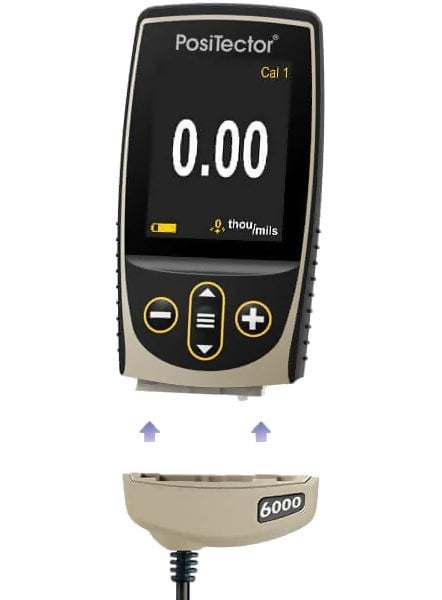

DeFelsko FRS1-G PosiTector 6000 FRS1 Coating Thickness Gauge with Standard Body, Cabled Right Angle Probe, Measures Coatings on Ferrous Metals, 0-60 mils
Price: $ 880.00
Model: FRS1-G with Standard Body
Storage: 1000 readings per probe - stored readings can be viewed or downloaded
Substrate: Ferrous Metals
Range: 0 - 60 mils (0 - 1500 m)
The DeFelsko FRS1-G PosiTector 6000 FRS1 Standard Coating Thickness Gage is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles. The PosiTector 6000 FRS1 features a right angle probe for measuring within areas of low headroom. This constant-pressure, stainless steel probe is hermetically sealed to be totally waterproof - ideal for underwater use. The DeFelsko PosiTector 6000 FRS1 Standard Ferrous Coating Thickness Gagefeatures a NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1000 in one group memory reading storage capacity and USB data output.

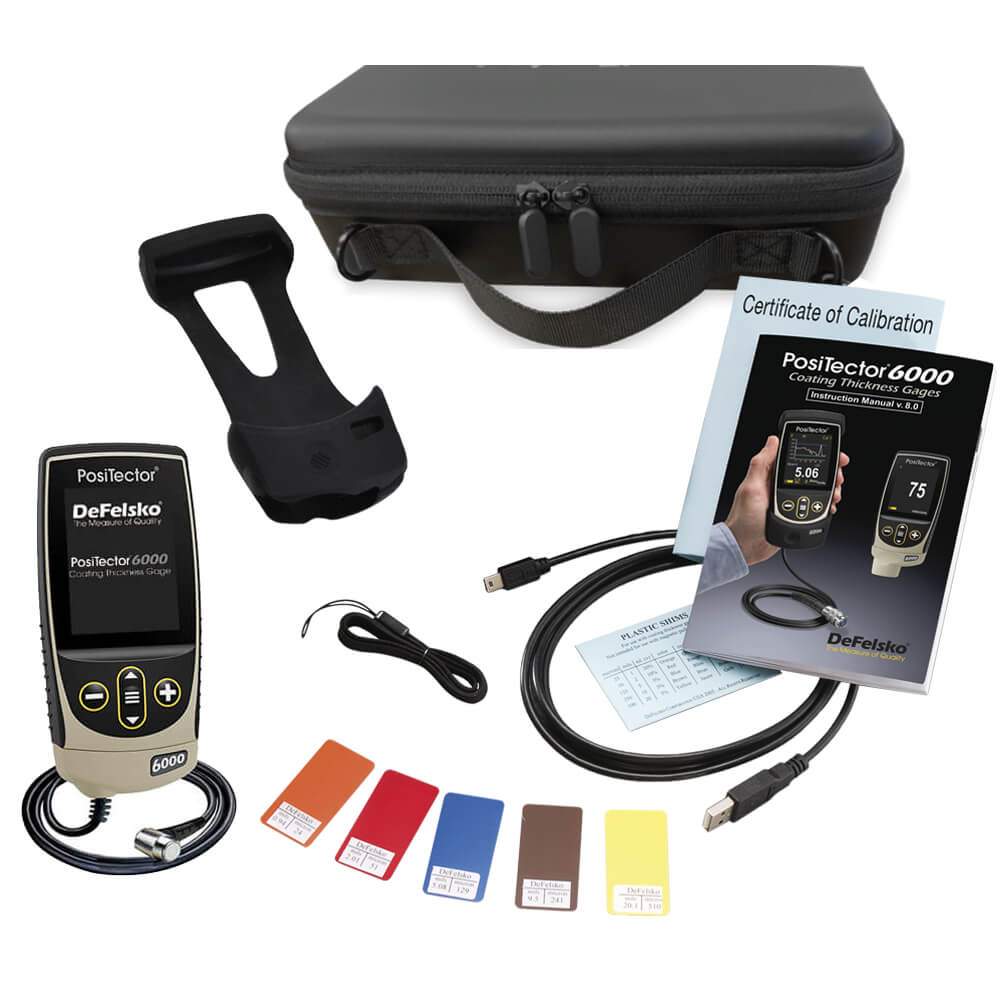

Kit Contents
The DeFelsko PosiTector 6000 FRS1 Standard Coating Thickness Gage Kit includes everything needed for testing: - PosiTector Standard Gage Body BDYSTD-G

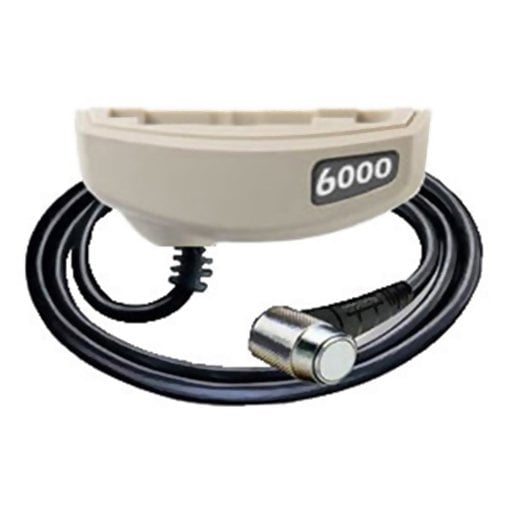

- PosiTector 6000 Probe PRBFRS-D
- Precision plastic shims
- Protective rubber holster with belt clip
- Wrist strap and protective lens shield
- 3 AAA alkaline batteries
- PosiSoft Software and USB cable
- Long Form Certificate of Calibration traceable to NIST or PTB
- Convenient carrying case and instructions
- Two (2) year warranty
|  |
Features
Simple - NEW Faster measurement speed - 60+ readings per minute
- Ready to measure - no calibration adjustment required for most applications
- Enhanced one-handed menu navigation
- Flashing display - ideal in a noisy environment
- RESET feature instantly restores factory settings
Durable - Solvent, acid, oil, water and dust resistant - weatherproof
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Accurate - Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for use on applications that require greater precision
- Conforms to national and international standards including ISO and ASTM
Versatile - Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero

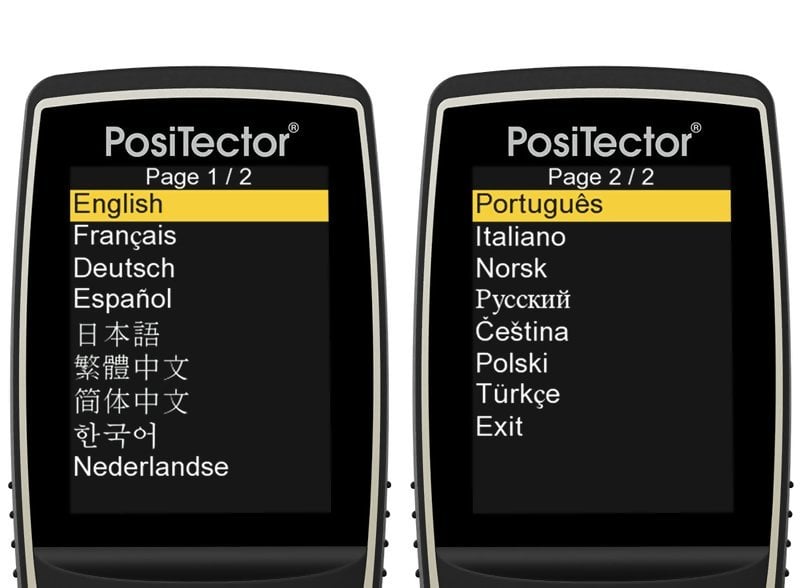

- Selectable display languages
- High contrast LCD with backlit display
- Flip display enables right-side-up viewing
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Uses alkaline or rechargeable batteries (built-in charger)
- Mils/Microns/mm switchable
Powerful - Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- NEW Enhanced FAST mode - 90+ readings per minute for quick inspection

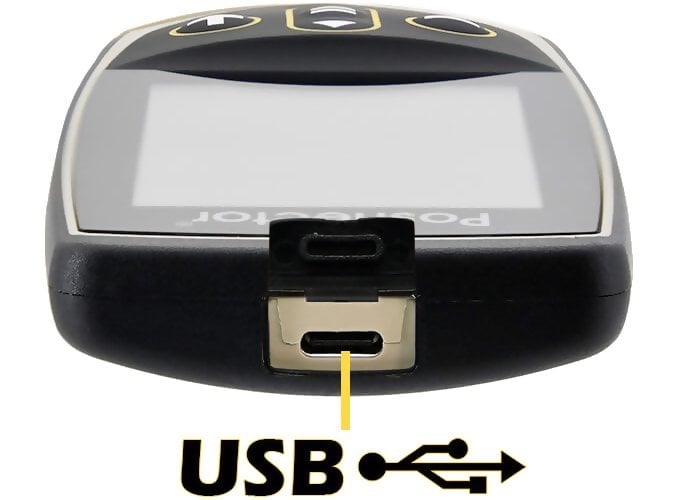

- Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- Software Updates via web keep your gage current
- Screen Capture record and save image into USB flash memory for record keeping and review
- Software Solutions for viewing, analyzing & reporting data
- Every stored measurement is date and time stamped
Standard Model Features
- Includes ALL features as shown above plus:
- Storage of 1000 readings per probe - stored readings can be viewed or downloaded
Specifications
| Measuring principle | magnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous) | | Display | High contrast, reversible color LCD | | Data Output | USB - "1" & "3" Models
Bluetooth - "3" Models | | Power | 3 AAA batteries, Included | | Dimensions | 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm) | | Weight | 5.8 oz. (165 g) without batteries | | Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant | | Warranty | 2 Years | | Calibration Certificate | Certificate of Calibration showing traceability to NIST included |
Probe Specifications
 | Range: | 0 - 60 mils | | 0 - 1500 | | *Accuracy: | (0.05 mils + 1%) 0 - 2 mils | | (0.1 mils + 1%) > 2 mils | | (1 + 1%) 0 - 50 | | (2 + 1%) > 50 |
PosiSoft Suite of Software
Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More
FAQ's - Frequently Asked Questions
Click to View DeFelsko PosiTector 6000Frequently Asked Questions
Related Products
DeFelsko CertifiedCoated Metal Plates - Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage
|  |
