Micro-Metrics OG204 / OG214 Plastic Tooke Paint Inspection Gauge IV
Micro-Metrics OG204 / OG214 Plastic Tooke Paint Inspection Gauge IV
This less expensive gage is identical to the OG212, but made of molded polycarbonate plastic.
Precision tool for inspection and thickness measurement of single or multiple coats on any substrate.

The OG214 Tooke Paint Inspection Gage is a precision tool for inspection and dry-film thickness measurement (in accordance with ASTM D4138) of single or multiple coats on any substrate, and for microscopic observation and measurement of substrate and film defects.

Kit Contents

  • Micro-Metrics OG204 / OG214 Plastic Tooke Paint Inspection Gauge IV
  • Two Spare Batteries
  • Sspare LED Bulb
  • Indelible Marking Pen
  • Hex Wrench
  • Technical Data Sheet
  • Carry Case


  • Dual-Measure scope, with 1 mil per hashmark space above the line and 20 microns per hashmark space below the line scale.
  • Measures thickness of coatings applied to wood, plastic, cement, glass, ceramics, mirror backings, metal, etc.
  • Assists in measuring brittleness and adhesion of coatings and materials.
  • Both the OG212 and OG214 are supplied with 1, 2, and 10 cutting tips installed in the gauge body. An optional 5 cutting tip is available.
  • Gauges come in a rugged plastic carrying case with cutting tip wrench, indelible marker, spare LED bulb, and spare batteries

The Tooke Gage uses an illuminated 50-power microscope equipped with the new Dual-Measure microscope with a measuring reticle marked in both mils and microns. The gage mounts three tungsten carbide cutting tips for precise incision of the work surface. Standard cutting tips are 1X, 2X, and 10X. (An optional 5X tip is available.) Also, a gauge can be ordered with any three tips desired, or with a single precision-ground tip and two blanks.

Direct measurement of total dry-film coating thickness and thickness of individual coats of paint is a unique capability of the Tooke Paint Inspection Gage. Thus, in addition to routine use, it often serves as a referee instrument to calibrate indirect or non-destructive thickness measuring instruments.


The Tooke Gage has been used to assess sandblast cleaning work, to measure plating and paint thickness on ceramics, metal, wood, and concrete, and even to measure protective backing thickness on mirrors. It is virtually the only tool for measuring paint on plastics. The quality of the incision in the film discloses much about the characteristics of the brittleness and adhesion of the material.

Other uses include assessment of substrate conditions and coating adhesion, and observation of microscopic cracking, tendency for brittleness, cratering, or other microscopic film symptoms.


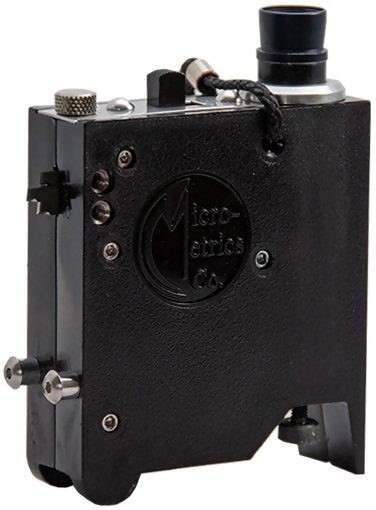

The molded polycarbonate plastic gauge body contains an illuminated microscope and mounts three tungsten-carbide cutting tips (that incise the V-groove for measuring) on the narrow side. Two guide studs project from the body on the same side as the cutting tips. The tripod thus formed by the three legs (guide studs and cutting tip) provides precise alignment of the tool with the surface to be grooved. A lanyard with keeper looped through the body secures the instrument to the inspectors wrist. The entire unit is designed for convenience and completeness in field inspection tasks.

Two cutting tip holders are available

The anodized Dual-Measure microscope reticle is marked in mils and microns.


  • A precision-ground cutting tool (the cutting tip) that is integral to the gauge is used to incise a small precision V-groove through the paint film and into the substrate.
  • Ensure the operable tip and both guide studs are in solid contact when incising the V-groove with the anodized OG212 Tooke Gage
  • Incorrectly incising the V-groove with the anodized OG212 Tooke Gage. Notice the closer guide stud is not touching the surface.
  • Tooke Gage cutting tips are precision-ground from tungsten-carbide blanks
  • The gauge in standard configuration mounts 1X, 2X, and 10X cutting tips. (An optional 5X tip is available.) The gauge can be ordered in any desired configuration, such as with three tips of the same size. You may also order (for a lower price) a gauge with only a single cutting tip and two blank tips (as spacers that provide lateral stability).
  • Diagram of cutting tip incisions
  • Close-up of the 1X tip extended for use and two blank tips; mounted in a (very) old-style OG202 body

Dual-Measure Microscope

Measurement with a Tooke Gage is a function of the cutting tip face-angle and NOT of the microscope.

One of the best things about the new Dual-Measure scopes is the return to an easy calculation system related to the cutting tip face-angle. As described in the measuring demo, and shown in the drawings in the Geometry section, below, count the hashmarks spaces for each layer of coating, and then calculate the coating depth using the the Dual-Measure scope conversion shown below.

Conversion for the Dual-Measure scope
Cutting tip used:Face ratioEach counted hash =
1 X1 : 11 mil
2 X1 : 21/2 mil
10 X1 : 10 1/10 mil

View through the new Dual-Measure reticle: the metric scale is marked in 20m per hashmark.

The discontinued universal microscope reticle is marked in 50m per hash. For universal scope conversions, see the Reticles section below

The Geometry of the Tooke Gage Incision

The easiest example of the process is demonstrated using the 1 cutting tip. In essence, you are cutting a triangle into your coating by incising the hypotenuse of a right-angle triangle. With the 45 precision-ground face of the 1 tip, youre cutting an equi-lateral triangle: 1 tip has a 1 : 1 ratio. (See the 1 tip drawing below.) That is, by counting the hashmarks that define the horizontal triangle-side at the bottom of the triangle (and your view through the microscope), you are measuring across the cut-width. The 1:1 ratio means your cut-width equals that is your coating depth. With the 10 tip, youre drawing a right-angle triangle, and one-tenth (1/10) the number of hashmarks across the cut-width is your coating depth. (See 10 figure below.)

Cutting tip diagram and ratio of cut-width : coating-depth

Interim Measuring Ddemonstration

This demonstration, using pictures through the no-longer available universal scope shows the process. A demonstration using the Dual-Measure reticle will be posted soon.

Note that in the photo below, the zero-line of the reticle is not lined up for the actual measurement (nor does it need to be; any hashmark will do). The gray/silver-colored line is the metal substrate; the white line is the (inside of the) green coating, which is what is measured visually through the scope. (See below for a different annotated version.) The cutting tip incises the (specifically-angled, depending on the chosen tip face) incision, allowing for calculation of the coating thickness. In this photo, the black marker has not been used to make the edge (top) of the green coating more easily seen.

The view through the universal microscope

In the next photo, the zero-line of the reticle is not lined up with the edge of the primer coating (the white line to the left of the zero-line); it is approximately centered in the substrate (gray/silver line). (This was not intentional; lining up the camera moved the gauge slightly.* Nor does it need to be lined up; any hashmark will do.) Line A is on the edge between the substrate and the beginning of the primer-coating: begin your measurement there. Line B marks the top of the primer coating/beginning of the top coating (light blue). Line C is the incision into the top coating, made easier to see by using the black marker provided with the Tooke Gage. (* The next major Micro-Metrics project after the Dual-Measure scopes is a camera adapter! Stay tuned!)

Annotated close-up through universal scope

Thus, in this photo and using the discontinued universal scope with 50m per hashmark space, the thickness measured for each tip equals:

1 X Tipwhite primer = 2 reticle/hashmark spaces = 100m
blue topcoat = 5 reticle/hashmark spaces = 250m
2 X Tipwhite primer = 2 reticle/hashmark spaces = 50m
blue topcoat = 5 reticle/hashmark spaces = 125m
10 X Tipwhite primer = 2 reticle/hashmark spaces = 10m
blue topcoat = 5 reticle/hashmark spaces = 25m

If you have an older gauge, with an U.S. standard-only or metric-only reticle, please see this page for the measurements that would apply to this incision. These old-style scopes have a green-anodized barrel. The old-style scope is no longer available.

Replacement Tungsten-carbide Cutting Tips.

Available in 1 (45), 2 (26 6') and 10 (5 7') configurations. An optional 5 tip (11 18') and blank unfaced tips are also available. (The blank tips provides lateral stability for the operable tip, if only one faced tip is used.)


Micro-Metrics OG204 / OG214 Tooke Paint Inspection Gauge II - Data Sheet
Micro-Metrics OG204 / OG214 Tooke Paint Inspection Gauge II - Dual-Measure Scope Swap Program
Micro-Metrics OG204 / OG214 Plastic Tooke Paint Inspection Gauge IV - Old Style

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Micro-Metrics OG214-Cal Tooke Paint Inpection Gauge IV Plastic Body with 1x, 2x, 10x Cutting Tips & Calibration Certificate $887.00
Accessories Price
OG200-1X Carbide Cutting Tip, 1x $80.00
OG200-2X Carbide Cutting Tip, 2x $80.00
OG200-10X Carbide Cutting Tip, 10x $80.00
OG200-5X Carbide Cutting Tip, 5x $80.00
