Magnetic induction (DCF-2000) or Eddy-current
Long-lasting, driftless calibration provides reliable, repeatable results over the entire measuring range
0.01 mil (0.1m) resolution
User-selectable averaging of 2 to 99 measurements when the coating or substrate is rough or uneven
Measuring Range - 0.01-78.0 mils (0.11980 m)

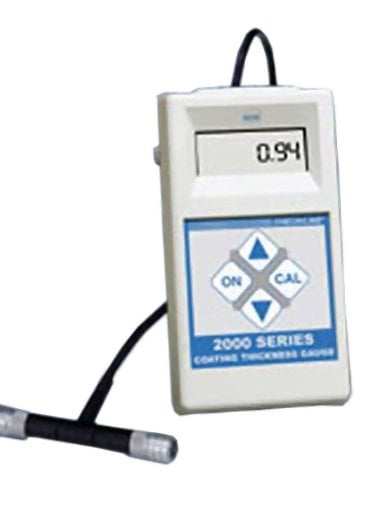

The Checkline DCF-2000 Series Coating Thickness Gauge accurately measures the thickness of paint, plating, galvanize and other coatings on Ferrous metal surfaces. The DCF-2000 incorporates the latest technology to provide consistent, highly accurate results in a wide variety of applications.
Kit Contents
- DCF-2000 Coating Thickness Gauge
- Bare test plate(s)
- Two precision calibration shims
- Instructions
- Foam-fitted carrying case
|  |
Features
- Long-lasting, driftless calibration provides reliable, repeatable results over the entire measuring range
- 0.01 mil (0.1m) resolution
- Keypad-selectable English or metric units
- Lightweight and battery-powered
Specifications
| Measuring Range | 0.01-78.0 mils (0.1-1980 m) |
| Accuracy | 1% of reading plus 0.03 mils (0.8 m) |
| Resolution | 0.01 mils (0-7 mils), 0.1m (0-99.9 m) | 0.1 mils (7-78 mils), 1m (100-1980 m) |
| Minimum Substrate Thickness | 15 mils (375 m) |
| Calibration Std's | Bare metal test plate(s) plus two (2) precision commercial grade calibration shims (NIST traceable shims are available. Inquire) |
| Battery Type | 9 Volt alkaline |
| Battery Life | 6 months (approx.) normal use with auto shutoff after 90 seconds of non-use |
| Dimensions | 5.7" x 3.1" x 1.5" | (145 x 79 x 38 mm) |
| Weight | 12 oz. (340 g) |
| Temperature Limits | Material32 - 300 F (0 - 149 C) | Ambient- 32 - 120 F (0 - 50 C) |
| Warranty | One year |
