Checkline DCF-900 Series Coating Thickness Gauge



Price: $ 0.00

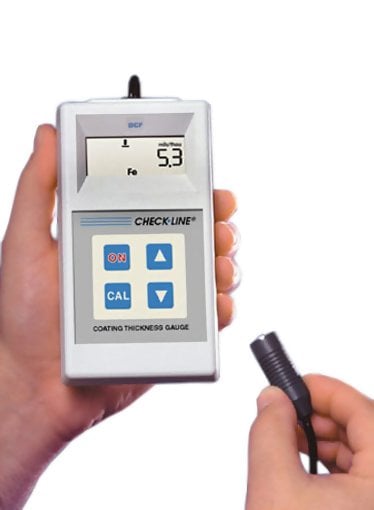

Checkline DCF-900 Series Coating Thickness Gauge
Separate Probe
Keypad-selectable units: Mils or Microns
No Statistics Displayed or Memory

Measuring Range 0-40.0 mils (0-999 m)

DCF-900 Coating Thickness Gauges measures the thickness of paint, plating, coatings and galvanizing on iron or steel...more accurately, dependably and economically!

DCN-900 Coating Thickness Gauges measures the thickness of paint coatings, anodize on aluminum, brass, zinc, stainless steel and other non-ferrous metals.

line
Features
line

  • Dependable accuracy over the entire range of the gauge, not just at "calibration check" points.
  • Keypad-selectable English or metric units
  • Continuous reading update detects soft coatings as probe tip "sinks" into them
  • The DCF-900 and DCN-900 Coating Thickness Gauges include the gauge and probe, a bare test plate, two precision calibration shims & instructions, all in a foam-fitted carrying case
  • Calibration to NIST standards is available upon request
  • Remote probe permits easy access for difficult, hard-to-reach places
  • Longer lasting, driftless calibration... Set it and forget it for long periods of time and from job to job
  • Very reliable operation... Consistent, repeatable measurements
  • Excellent results with thin substrates... As thin as 0.005" (10 m)

line

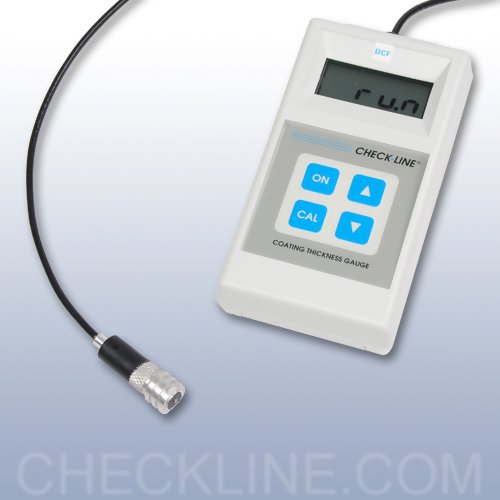

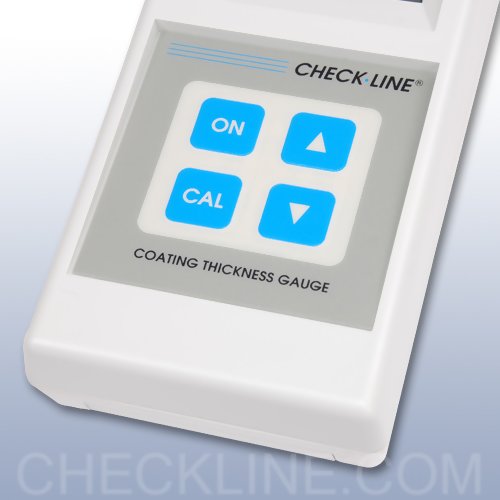

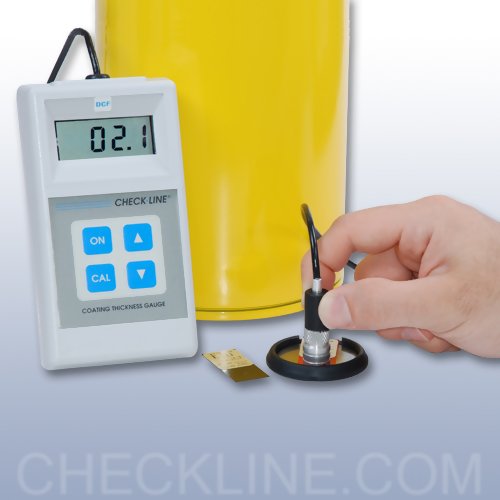

Photo Gallery
line

line
Complete Kit
line

The 900 Series Gauges are supplied as a complete kit including gauge, ferrous or non-ferrous zero plate, 2 plastic test shims and instruction manual in a foam fitted, hard plastic carrying case.

complete kit

line
Specifications
line

Range0.1-40.0 mils (0-999 m)
Resolution0.1 mil (1 m)
Accuracy0-10 mils: 0.1 mil
10-40 mils: 1% of reading

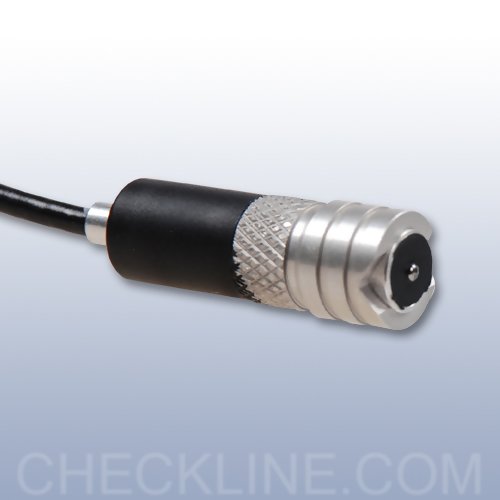

ProbeDCF-900: Monopolar, magnetic induction, 0.4" (10 mm) dia., spring-loaded, with V-notched shell and 28" (70 cm) cable
DCN-900: Eddy current, 0.4" (10mm) dia., spring-loaded, with v-notched shell and 28" (70cm) cable
Battery/Life9 V alkaline/approx. 6 months normal use, with auto shutoff after 90 seconds of non-use.
Dimension5.7" x 3.1" x 1.5"
(145 x 79 x 38 mm)
Weight9 oz. (250 g)
Temperature LimitsMaterial: 15 to 140 F (-10 to 60 C)
Ambient: 32 to 125 F (0 to 50 C)
WarrantyOne (1) year


line
Related Products
line

NTS
NIST Certified Plastic Shims
related

line

TS-5CG
Commercial Grade Shim Set
related

line
Measuring Limits
line

Minimum Radius for Convex Surfaces0.375" (9.5 mm)
Minimum Radius for Concave Surfaces2.5" (63.5 mm)
Minimum Headroom2.5" (63.5mm)
Minimum Sample Diameter0.5" (13 mm)
Minimum Substrate Thickness - F0.020"
Minimum Substrate Thickness - NFeNA


line
Downloads
line

Checkline 900 Series Coating Thickness Gauge - Instruction Manual
Checkline 900 Series Coating Thickness Gauge - Data Sheet
