ElektroPhysik 80-810-0000 SecoTest Cross Hatch Cutter Handle - BLADES SOLD SEPARATELY



Price: $ 240.00

ElektroPhysik SecoTest Cross Hatch Cutter
For testing according to ISO 2409 and ASTM D3359-02
Multi cutting blade with 6 cutting edges
Cutting edges lie on the surface
With Magnifying glass for clear evaluation of the cut edges

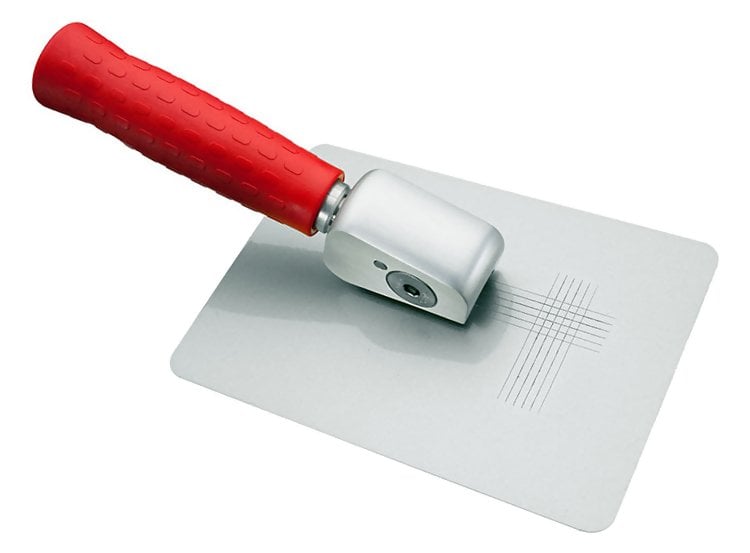

Exceptionally strong and handy cross hatch cutter made on the lines of DIN EN ISO 2409 and ASTM D3359-02 to conduct cross cut tests. The SecoTest is used for the assessment of adhesiveness of single or multiple coatings (varnishes, synthetic materials, etc.) on hard (steel) and soft (wood) substrates.

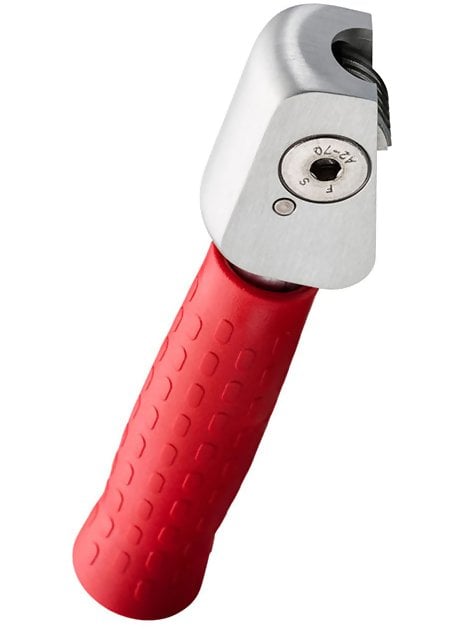

The cross cut testers of the SecoTest series consist of a sturdy holder for the six-edge multi cutting blade and a rotatable non-slip grip, which prevents the multi cutting blade from canting.

To ensure that this procedure is repeatable, put the test object through a suitable conditioning process (see DIN EN ISO 2409, section 6); while testing at construction sites make a note of the ambient conditions in the test report.

The procedure defined by ISO 4642 can be employed to measure adhesiveness.


line

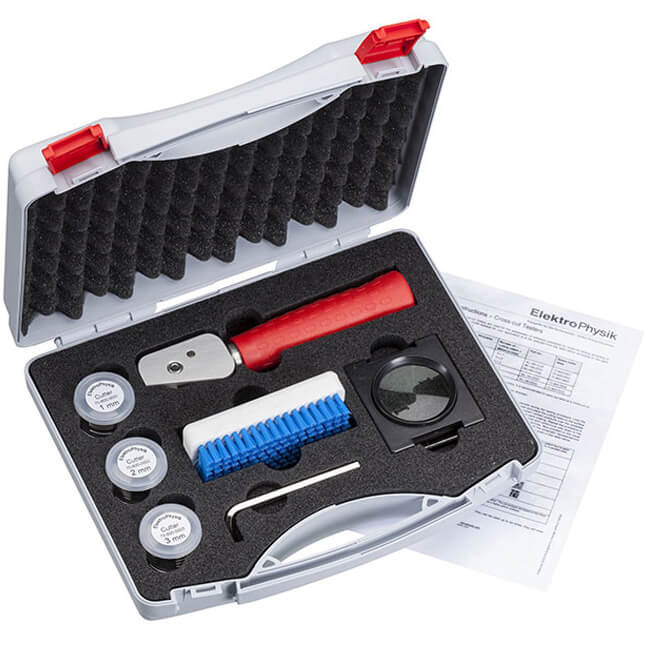

Kit Contents
line

  • SecoTest gauge with cutting head
  • Hex tip screwdriver for changing the blades
  • Magnifier for visual inspection
  • Brush
  • Carrying case
  • Instruction Manual

Blades are sold separately


line
Features
line

  • High-grade, tool-steel multi cutting blade in 4 different models with standard cutting-edge geometry
  • Movable cutter head
  • Multi cutting blade with 6 cutting edges
  • Versions for tests according to DIN EN ISO 2409 and ASTM D 3359
  • Cutting edges lie on the surface
  • With Magnifying glass for clear evaluation of the cut edges


line
Specifications
line

Dimensions18 x 3,8 x 3 cm
Weight330 gram
Warranty1 year


lineSecoTest 1

Coating Thicknessup to 60 m on hard substrates (e.g. metal, plastics)
6 x 1 mmNumber of cutting edges x distance (mm)
NormDIN EN ISO 2409


lineSecoTest 2

Coating Thicknessup to 60 m on soft substrates (e.g. wood, render)
Coating Thicknessfrom 61 m to 120 m on hard and soft substrates
6 x 2 mmNumber of cutting edges x distance (mm)
NormDIN EN ISO 2409


lineSecoTest 2

Coating Thicknessfrom 51 m to 125 m
6 x 2 mmNumber of cutting edges x distance (mm)
NormASTM D 3359


lineSecoTest 3

Coating Thicknessfrom 121 m to 250 m on hard and soft substrates
6 x 3 mmNumber of cutting edges x distance (mm)
NormDIN EN ISO 2409


lineSecoTest 4

Coating Thicknessup to 50 m
11 x 1 mmNumber of cutting edges x distance (mm)
NormASTM D 3359


line
Downloads
line

ElektroPhysik SecoTest Cross Hatch Cutter - Data Sheet
ElektroPhysik SecoTest Cross Hatch Cutter - Instruction Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
ElektroPhysik 80-810-0000 SecoTest Cross Hatch Cutter Handle - BLADES SOLD SEPARATELY $240.00
Accessories Price

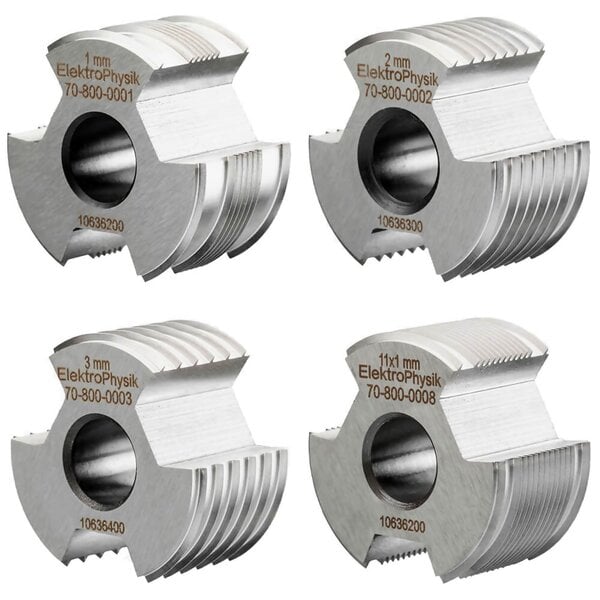

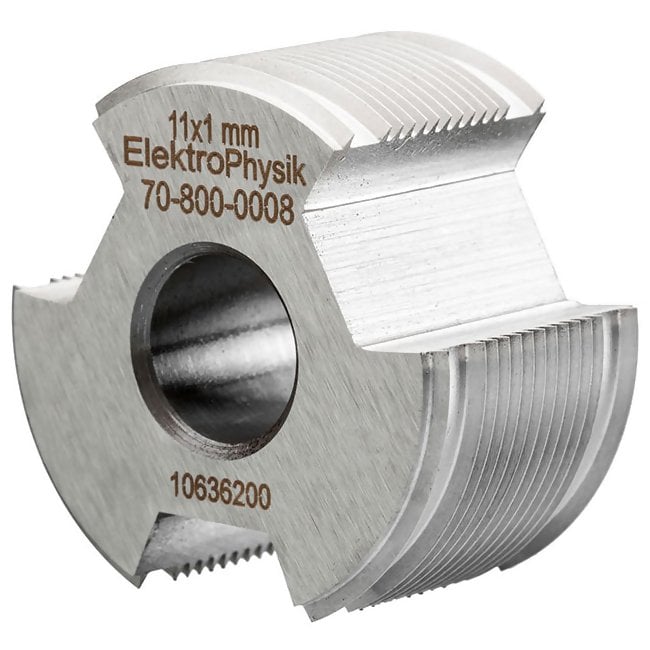

ElektroPhysik 70-800-0008 SecoTest Blades, 11 blades 1 mm distance for ASTM D 3359 $205.00

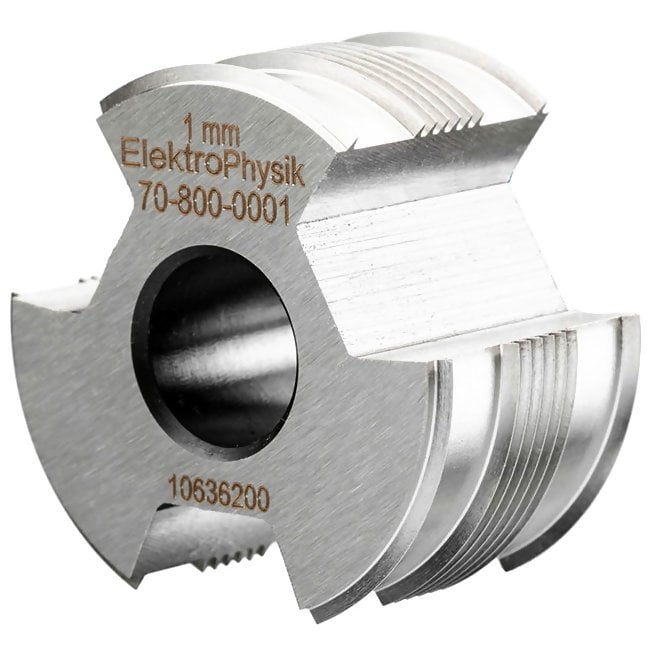

ElektroPhysik 70-800-0001 SecoTest Blades, 6 blades 1 mm distance for ISO 2409 $205.00

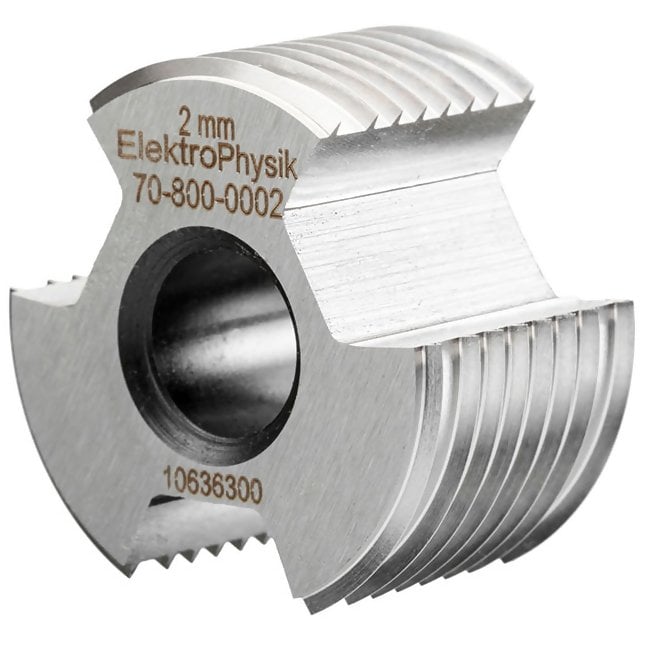

ElektroPhysik 70-800-0002 SecoTest Blades, 6 blades 2 mm distance for ISO 2409 $205.00

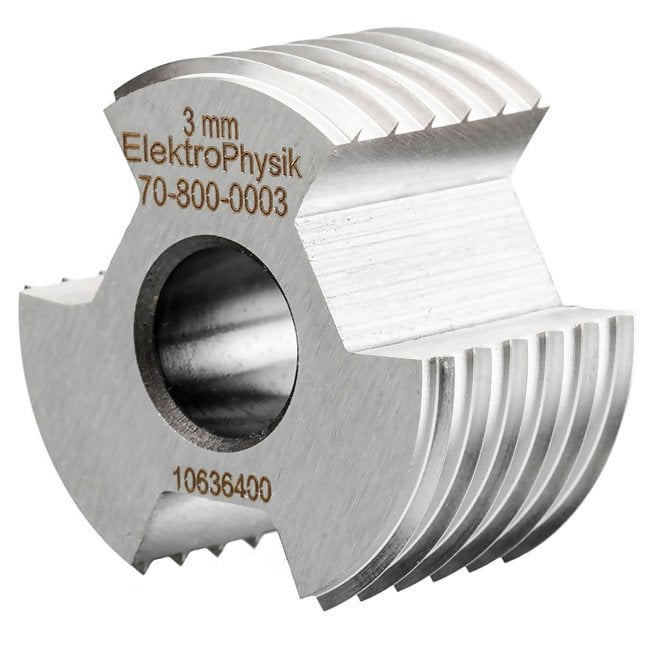

ElektroPhysik 70-800-0003 SecoTest Blades, 6 blades 3 mm distance for ISO 2409 $205.00
