DeFelsko PosiTest F Magnetic Pull-Off Coating Thickness Gage, Banana Gauge, Scale 0-2000 microns
Price: $ 350.00
Banana Gauge
Application: Hot dip galvanizing, hard chrome metalizing, paint, enamel, plastic coatings on steel
Scale F: 0-2000 m

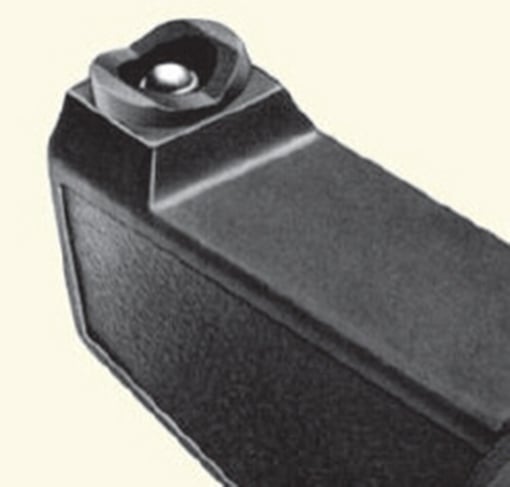

Strong, wear resistant, ruby-tipped probe
The DeFelsko PosiTest F magnetic pull-off thickness gage, Banana Gauge, is ideal for the non-destructive measurement of non-magnetic coatings (hot dip galvanizing, hard chrome metalizing, paint, enamel, plastic coatings) on steel.
Kit Content
The DeFelsko PosiTest F Coating Thickness Gage Kit includes everything needed for testing: - DeFelsko PosiTest F Magnetic Pull-Off Coating Thickness Gage
- Wrist strap and instructions in a high quality leather case with belt loops for your convenience
- Certificate of Calibration showing traceability to PTB
- Two (2) year warranty
|  |
Features
Simple - Positive visual and audible indicators to designate when thickness reading is established

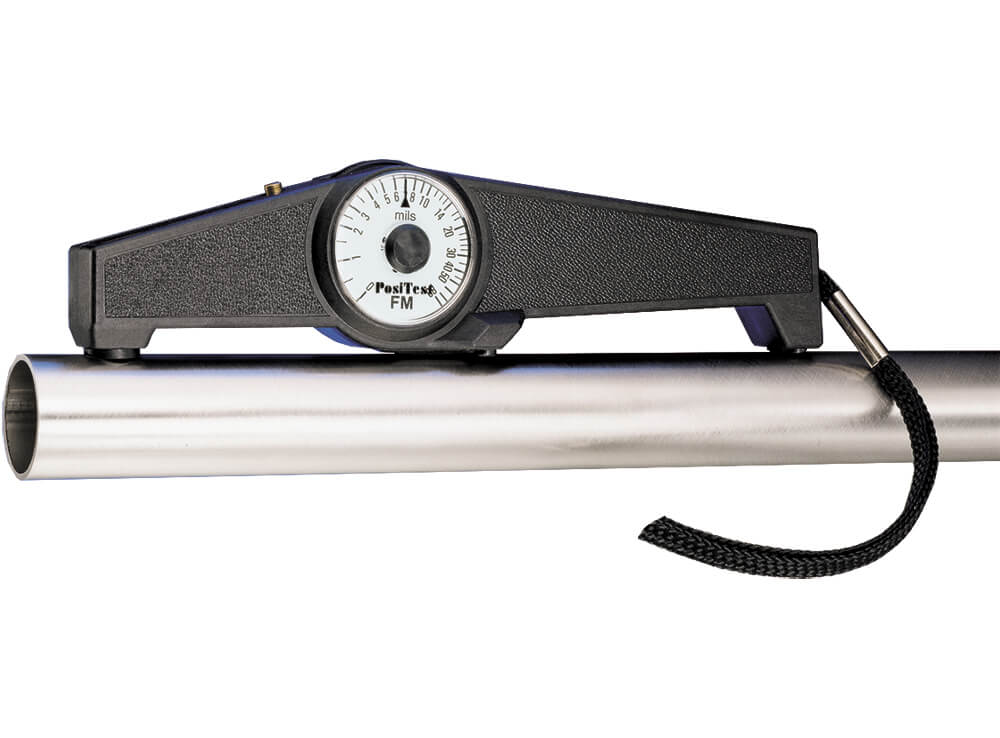

- V grooves in probe housing and Gage base allow correct positioning on cylindrical objects
- Compact, lightweight, precisely balanced, independent of gravity can be used in any position
- GO/NO-GO button can be pre-set for rapid measurement
- Probe contact and dial rotation all in a one-finger operation
- Furnished with wrist strap and instructions in a high quality leather case with belt loops for your convenience
Durable - Extra rugged housing, not affected by mechanical shock, water, acid or solvents
- Unique overall design, fully supported, positive positioning, no pivoting tendencies during measurement
- Can be used fully supported or with only the front probe area contacting the surface
- Functions on a permanent rare-earth cobalt magnet
- No batteries/electronics
- 2 year warranty
Accurate - Certificate of Calibration showing traceability to PTB included with every gage
- Matching Calibration Standards and Procedures available for every model
- Highly wear resistant Carbide Probe for longest life and continuous accuracy
- Remove center of dial cover for easy calibration adjustment
- Conforms to national and international standardsle
