Coating Thickness Gages | Buy DeFelsko 200C3-G Positector 200 C3 Advanced Ultrasonic Coating Thickness Gages for Non-Metal Substrates, 2

Measuring Range: 2 - 150 mils (50 - 3800 m)

Separate Probe

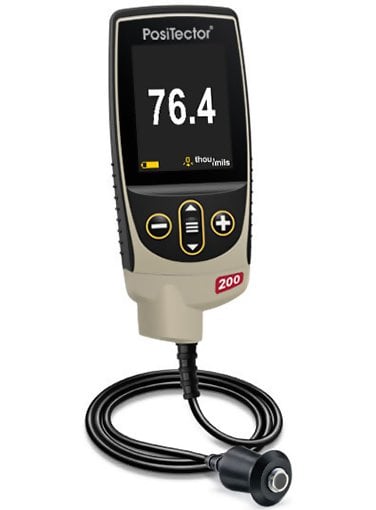

The DeFelsko PosiTector 200C3-G non-destructively measures a wide variety of applications using proven ultrasound technology. The PosiTector 200C3-G model measures coating thickness on concrete, fiberglass, etc. Advanced models measure up to 3 layers with graphics.

Conforms to ASTM D6132 and ISO 2808

line
Kit Contents
line

The DeFelsko PosiTector 200 C3 Advanced Ultrasonic Coating Thickness Gage Kit includes everything needed for testing:

PosiTector Advanced Gage Body BDYADV-G
PosiTector 200 C Probe PRB200C
Couplant (ultrasonic gel) and precision plastic shims
Protective rubber holster with belt clip
Wrist strap and protective lens shield
3 AAA alkaline batteries
PosiSoft Software and USB cable
Long Form Certificate of Calibration traceable to NIST or PTB
Convenient carrying case and instructions
Two (2) year warranty

line
Features
line

Simple

Ready to measureno adjustment required for most applications
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
RESET feature instantly restores factory settings

Durable

NEW Weatherproof, dustproof, and water resistantIP65-rated enclosure
NEW Ergonomic design with durable rubberized grip
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe

Accurate

Responsive transducers provide fast, accurate readings
Certificate of Calibration showing traceability to NIST or PTB included
Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808

Versatile

PosiTector body accepts all PosiTector 200, 6000, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
NEW Auto rotating display with Flip Lock
Mils/Microns switchable
Selectable display languages

Powerful

Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Rangeideal for ignoring unwanted surface echos
NEW Screen Capture save 100 screen images for record keeping and review
NEW up to 30% longer battery life
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
PosiSoft USB Drivestored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Includes PosiSoft suite of software for viewing and reporting data
Software Updates via web keep your gage current

line
Advanced Models Features
line

Includes ALL features as shown above plus:

Measure the total thickness of a coating system or up to 3 individual layer thicknesses in a multi-layer system.
Graphics mode with screen capture for detailed analysis of the coating system
NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
Live graphing of measurement data
NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

line
PosiSoft Suite of Software
line

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More

line
FAQ's - Frequently Asked Questions
line

Click to View DeFelsko PosiTector 200 Frequently Asked Questions

line
Related Products
line

Bluetooth Printer
PRINTERBT

For use with the: PosiTector 6000, PosiTector 200, PosiTector SPG, PosiTector RTR H, PosiTector RTR 3D, PosiTector DPM, PosiTector IRT, PosiTector SST, PosiTector UTG, PosiTector SHD, PosiTector BHI

line
Downloads
line

DeFelsko 200 Positector Coating Thickness Gages for Non-Metal Substrates - Full Instruction Manual

DeFelsko 200 Positector Coating Thickness Gages for Non-Metal Substrates - Literature

DeFelsko PosiTector Coating Thickness Gages - Online Instructions Manual

Accessories for DeFelsko Inspection Instruments - Online Catalog

DeFelsko 200C3-G Positector 200 C3 Advanced Ultrasonic Coating Thickness Gages for Non-Metal Substrates, 2 - 150 mils
