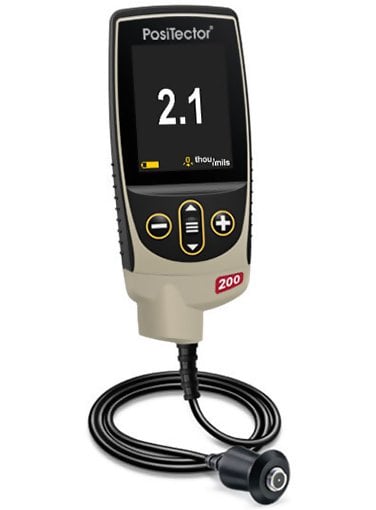

DeFelsko 200B3-G Positector 200 B3 Advanced Ultrasonic Coating Thickness Gages for Non-Metal Substrates, 0.5 - 40 mils



Price: $ 2,295.00

DeFelsko 200B3-G Positector 200 B3 Advanced Ultrasonic Coating Thickness Gage

Measuring Range: 0.5 - 40 mils (13 - 1000 m)



The DeFelsko PosiTector 200B3-G non-destructively measures a wide variety of applications using proven ultrasound technology. The PosiTector 200B3-G model measures polymer coating on wood, plastic, etc. Advanced models of the PosiTector 200 measure up to 3 layers with graphics.

Conforms to ASTM D6132 and ISO 2808


line
Kit Contents
line

The DeFelsko PosiTector 200 B3 Advanced Ultrasonic Coating Thickness Gage Kit includes everything needed for testing:

  • PosiTector Advanced Gage Body BDYADV-G
  • PosiTector 200 B Probe PRB200B
  • Couplant (ultrasonic gel) and precision plastic shims
  • Protective rubber holster with belt clip
  • Wrist strap and protective lens shield
  • 3 AAA alkaline batteries
  • PosiSoft Software and USB cable
  • Long Form Certificate of Calibration traceable to NIST or PTB
  • Convenient carrying case and instructions
  • Two (2) year warranty


line
Features
line

Simple

  • Ready to measureno adjustment required for most applications
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

Durable

  • NEW Weatherproof, dustproof, and water resistantIP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

Accurate

  • Responsive transducers provide fast, accurate readings
  • Certificate of Calibration showing traceability to NIST or PTB included
  • Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808

Versatile

  • PosiTector body accepts all PosiTector 200, 6000, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
  • NEW Auto rotating display with Flip Lock
  • Mils/Microns switchable
  • Selectable display languages

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Rangeideal for ignoring unwanted surface echos
  • NEW Screen Capture save 100 screen images for record keeping and review
  • NEW up to 30% longer battery life
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • PosiSoft USB Drivestored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Includes PosiSoft suite of software for viewing and reporting data
  • Software Updates via web keep your gage current


line
Advanced Models Features
line

Includes ALL features as shown above plus:

  • Measure the total thickness of a coating system or up to 3 individual layer thicknesses in a multi-layer system.
  • Graphics mode with screen capture for detailed analysis of the coating system
  • NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
  • Live graphing of measurement data
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols


line
PosiSoft Suite of Software
line

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


line
FAQ's - Frequently Asked Questions
line

Click to View DeFelsko PosiTector 200 Frequently Asked Questions


line
Related Products
line

Bluetooth Printer
PRINTERBT

  • For use with the: PosiTector 6000, PosiTector 200, PosiTector SPG, PosiTector RTR H, PosiTector RTR 3D, PosiTector DPM, PosiTector IRT, PosiTector SST, PosiTector UTG, PosiTector SHD, PosiTector BHI
related


line
Downloads
line

DeFelsko 200 Positector Coating Thickness Gages for Non-Metal Substrates - Full Instruction Manual
DeFelsko 200 Positector Coating Thickness Gages for Non-Metal Substrates - Literature
DeFelsko 200 Positector Coating Thickness Gages for Non-Metal Substrates - Quick Guide
DeFelsko PosiTector Coating Thickness Gages - Online Instructions Manual
DeFelsko Accessories for Inspection Instruments - Online Catalog

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
DeFelsko 200B3-G Positector 200 B3 Advanced Ultrasonic Coating Thickness Gages for Non-Metal Substrates, 0.5 - 40 mils $2,295.00
Accessories Price
DeFelsko PRINTERBT Bluetooth Printer receives data from Advanced models for use with the PosiTectors: 6000, 200, SPG, RTR H, RTR 3D, DPM, IRT, SST, UTG, SHD, BHI $295.00
DeFelsko PAPERBT 10 rolls of printer paper $20.00
DeFelsko STDCSS Certified Plastic Shim Set, 8 shims $195.00
DeFelsko STDZSTL Zero Plates Small - Steel $55.00
DeFelsko STDZALM Zero Plates Small - Aluminum 38mm $55.00
DeFelsko BOOTGAGE-G Protective Rubber Holster for PosiTector gage bodies $20.00
DeFelsko USBAC-G AC Power Kit for use with the PosiTectors: 6000, 200, SPG, RTR H, RTR 3D, DPM, IRT, SST, UTG, SHD, BHI for with serial numbers greater than 864000 $45.00
DeFelsko CASEINSP Plastic Inspection Case for use with the PosiTectors: 6000, 200, SPG, RTR H, RTR 3D, DPM, IRT, SST, UTG, SHD, BHI $30.00
DeFelsko LENSSHIELD-G Protective Lens Shield pack of five $10.00
DeFelsko CASENYLON-G Nylon Pouch $15.00
DeFelsko GEL_P 4 oz. Ultrasonic Gel (case of 12) $170.00
DeFelsko GEL_T 4 oz. Ultrasonic Gel (twin pack) $42.00
