DeFelsko 200C1-E Positector 200 C1 Standard Ultrasonic Coating Thickness Gages for Non-Metal Substrates, 2 - 150 mils



Price: $ 2,095.00

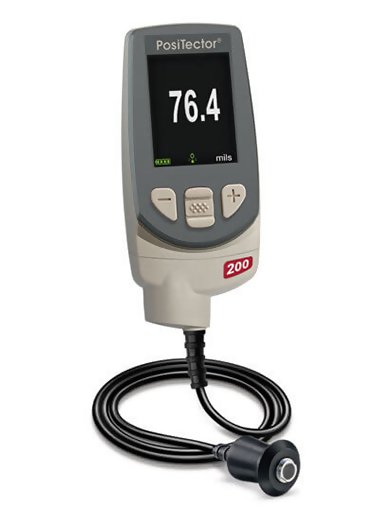

DeFelsko 200C1-E Positector 200 C1 Standard Ultrasonic Coating Thickness Gage
DeFelsko 200C1-E Positector 200 C1 Standard Ultrasonic Coating Thickness Gages for Non-Metal Substrates.

Measuring Range: 2 - 150 mils (50 - 3800 m)


Separate Probe

The DeFelsko PosiTector 200C1-E non-destructively measures a wide variety of applications using proven ultrasound technology. The PosiTector 200C1-E model measures coating thickness on concrete, fiberglass, etc.

Conforms to ASTM D6132 and ISO 2808


line
Kit Contents
line

The DeFelsko PosiTector 200 C1 Standard Ultrasonic Coating Thickness Gage Kit includes everything needed for testing:

  • PosiTector Standard Gage Body BDYSTD
  • PosiTector 200 C Probe PRB200C
  • Couplant (ultrasonic gel) and precision plastic shims
  • Protective rubber holster with belt clip
  • Wrist strap and protective lens shield
  • 3 AAA alkaline batteries
  • PosiSoft Software and USB cable
  • Long Form Certificate of Calibration traceable to NIST or PTB
  • Convenient carrying case and instructions
  • Two (2) year warranty


line
Photo Gallery
line


line
Features
line

Simple

  • Ready to measure no calibration adjustment required for most applications
  • Enhanced one-handed menu navigation
  • Flashing display ideal in a noisy environment
  • RESET feature instantly restores factory settings

Durable

  • Solvent, acid, oil, water and dust resistant - weatherproof
  • Shock-absorbing, protective rubber holster with belt clip
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
  • Responsive transducers provide fast, accurate readings
  • Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808

Versatile

  • High Contrast backlit display for bright or dark environments
  • Mils/Microns switchable
  • Selectable display languages
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
  • Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • Software Updates via web keep your gage current
  • Screen Capture record and save image into USB flash memory for record keeping and review
  • Software Solutions for viewing, analyzing & reporting data
  • Every stored measurement is date and time stamped


line
Standard Model Features
line

  • Measure the total thickness of a coating system
  • Storage of 250 readings per probestored readings can be viewed or downloaded


line
PosiSoft Suite of Software
line

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


line
FAQ's - Frequently Asked Questions
line

Click to View DeFelsko PosiTector 200 Frequently Asked Questions


line
Related Products
line

Bluetooth Printer
PRINTERBT

  • For use with the: PosiTector 6000, PosiTector 200, PosiTector SPG, PosiTector RTR H, PosiTector RTR 3D, PosiTector DPM, PosiTector IRT, PosiTector SST, PosiTector UTG, PosiTector SHD, PosiTector BHI
related


line
Downloads
line

DeFelsko 200C1-E Positector 200 C1 Standard Ultrasonic Coating Thickness Gage for Non-Metal Substrates- 200 C Ordering Guide
DeFelsko 200C1-E Positector 200 C1 Standard Ultrasonic Coating Thickness Gage for Non-Metal Substrates- Full Instruction Manual
DeFelsko 200C1-E Positector 200 C1 Standard Ultrasonic Coating Thickness Gage for Non-Metal Substrates- Literature
DeFelsko 200C1-E Positector 200 C1 Standard Ultrasonic Coating Thickness Gagefor Non-Metal Substrates- Quick Guide
DeFelsko PosiTest-AT Pull Off Adhesion - Online Instructions Manual


line
Buy Now
line


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
DeFelsko 200C1-E Positector 200 C1 Standard Ultrasonic Coating Thickness Gages for Non-Metal Substrates, 2 - 150 mils $2,095.00
Accessories Price
PRINTERBT Bluetooth Printer for PosiTector Advanced models $425.00
Positector 200B Probe Only with Certificate of Calibration Part No. PRB200B-C (spare/replacement) $1,615.00
Positector 200C Probe Only with Certificate of Calibration Part No. PRB200C-C (spare/replacement) $1,815.00
Positector 200D Probe Only with Certificate of Calibration Part No. PRB200D-C (spare/replacement) $2,015.00
AC Power Adapter, 100-230V $45.00
12oz Bottle of Coupling Fluid $30.00
GEL-P Case of 12 bottle of Couplant, 4oz each $170.00
