Automatic identification of Substrate type
1-Point calibrationOne model only for Fe and nFE substrates

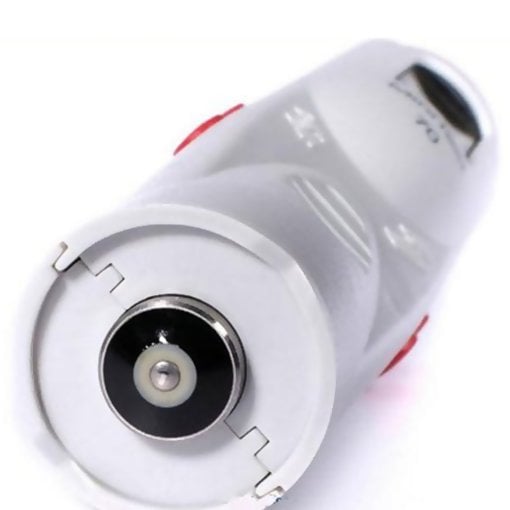

The ElektroPhysik MiniTest 70B Coating Thickness Gauge is a pocket sized, versatile and accurate thickness gauge with built-in sensor. It is a lightweight and handy coating thickness gauge in a pencil format with a built-in sensor. Especially designed for easy operation, this gauge is the ideal tool to measure any non-magnetic coatings on steel and/or any insulating layers on non-ferrous metals. The spring-mounted sensors are equipped with wear-resistant sensor poles and ensure durability even when used for measurements on rough and abrasive substrates.
Designed for measurement on non-ferrous metals can measure insulating coatings such as paint, enamels, anodic films, etc, on non-ferrous metal bases such as aluminium, copper, brass, etc.
And for measurement on ferrous metals, non-magnetic coatings such as paint, enamels, chrome, etc., can be measured on ferro-magnetic bases such as constructional steel, car bodies, etc.

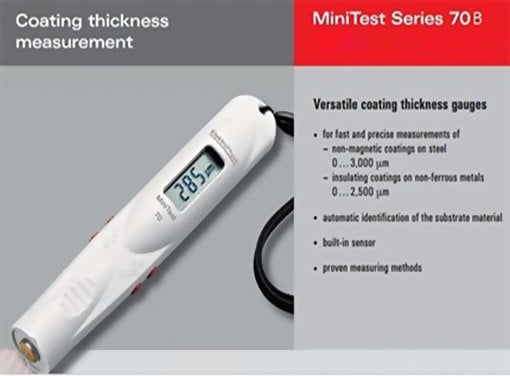

The MiniTest 70B Series provides accurate, non-destructive coating measurements on steel and non-ferrous metals. Also, the FN model is equipped with a dual sensor for automatic identification of the substrate. According to the substrate, it adjusts to the appropriate measuring principle: magnetic induction or eddy currents principle.
Measuring range 0 to 3 mm on steel substrates and 0 to 2.5 mm on non-ferrous metals.
Kit Contents
- MiniTest 70B - Calibration foils
- Operating instructions
| |
Features
- Pocket sized, compact coating thickness gauge
- For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
- Lightweight: only 80 grams
- Easy 2 button operation
- Built-in spring-mounted sensor
- Enables 1-point calibrations
- Automatic identification of the substrate material
- Built-in sensor
Specifications
| Measuring Range | Ferrous Substrates: 0 - 3 mm (0-120 mils)
Non-Ferrous Substrates: 0 - 2.5 mm (0-100 mils) |
| Measuring Principle | Magnetic-induction / Eddy currents |
| Signal Processing | Sensor integrated 32-bit signal processing (SIDSP) |
| Accuracy | (2 m + 3 % of reading) with 1-point calibration |
| Repeatability | (2 m + 1 % of reading)
(0.04 mils + 1% of reading) |
| Low range resolution | 10 |
| Minimum curvature radius convex | 50 mm |
| Minimum curvature radius concave | 40 mm |
| Minimum measuring area | 50 mm |
| Minimum substrate thickness | F: 0.7 mm
N: 0.1 mm |
| Measuring units | Metric/Imperial switchable |
| Calibration modes | 1-point calibration |
| Operating temperature range | -10 to 60 C (14 - 140 F) |
| Storage temperature range | -20 to 70 C (-4 - 158 F) |
| Power supply | 1xAA (Mignon)-battery |
| International standards | DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376 |
| Dimensions | Approx. 157 mm length, 27 mm |
| Weight incl. battery | Approx. 80 g (2.8 oz) |
| Warranty | 1 year |
