DeFelsko PosiTector 6000 FXS Xtreme High Temp (250 C / 500 F) Cabled Spare Probe PRBFXS-D (Display Sold Separately)

Price: $ 695.00

DeFelsko PRBFXS-D Cabled Spare Probe for PosiTector 6000 FXS Xtreme

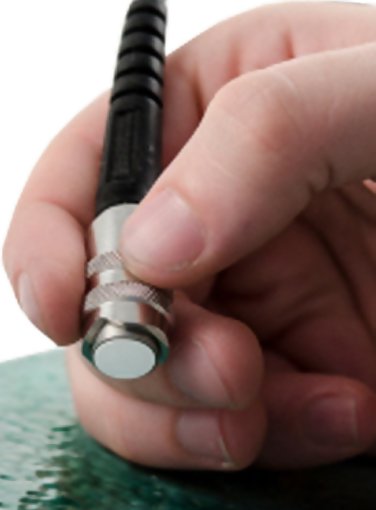

DeFelsko PosiTector 6000 FXS XtremeTM Coating Thickness probe built for hot surfaces and rugged applications including hot dipped and thermally sprayed galvanizing on steel
New - Ability to measure on hot surfaces up to 250 C (500 F)
New - Braided stainless steel cable
New - Increased measuring range 0 2000 m (80 mil)

The PosiTector 6000 consists of a body and a probe. A wide selection of interchangeable probes are available. All bodies accept all probes.

Photo Gallery



  • Two (2) year probe warranty
  • Heavy-duty, gold-plated locking connector for industrial environments
  • Certificate of Calibration (Long Form) traceable to NIST or PTB included with every probe
  • Each probe retains its own unique calibration information (allowing full probe interchangeability)
  • Extended cables available for underwater or remote measuring. Specify length when ordering
  • Probes are PosiTector SmartLink compatible - wirelessly connect PosiTector 6000 probes to your smart device


Xtreme Cabled Spare Probe line

Uniquely designed for rugged applications. The FXS Xtreme probe with zirconia-toughened alumina wear face is ideal for rough steel surfaces.

Enhanced measuring speed of 50+ readings per minute makes it ideal for measuring large, rough surfaces quickly. Scan mode increases measurement rate to over 100 readings per minute (PosiTector Advanced only).

Compatible with PosiTector bodies with serial numbers greater than 700,000.

Built-in Probe
Probe ModelFS
Range0 - 1500 um
0 - 60 mils
Accuracy*+ (0.05 mils + 1%)0 - 2 mils
+ (0.1 mils+1%)> 2 mils
+ (1 um + 1%)0 - 50 um
+ (2 um + 1%)> 50 um

*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

Probe Ordering Guide

Probe ModelSubstratesMeasuring Range
FXSFerrous0 - 60 mils (0 - 1500 um)


DeFelsko PosiTector 6000 FNGS Cabled Spare Probe - Data Sheet
DeFelsko PosiTector 6000 FNGS Cabled Spare Probe - Instruction Manual
PosiTector 6000 Coating Thickness Gauges - Online Instruction Manual with Videos

Buy Now line

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
DeFelsko PosiTector 6000 FXS Xtreme High Temp (250 C / 500 F) Cabled Spare Probe PRBFXS-D (Display Sold Separately) $695.00
